Monoblock Vacuum Units.
Reduced power consumption and a self-cleaning filter system for constant suction capacity.
Use is for a single operator, and the application range is up to 1,000 square meters.
Technical characteristics.

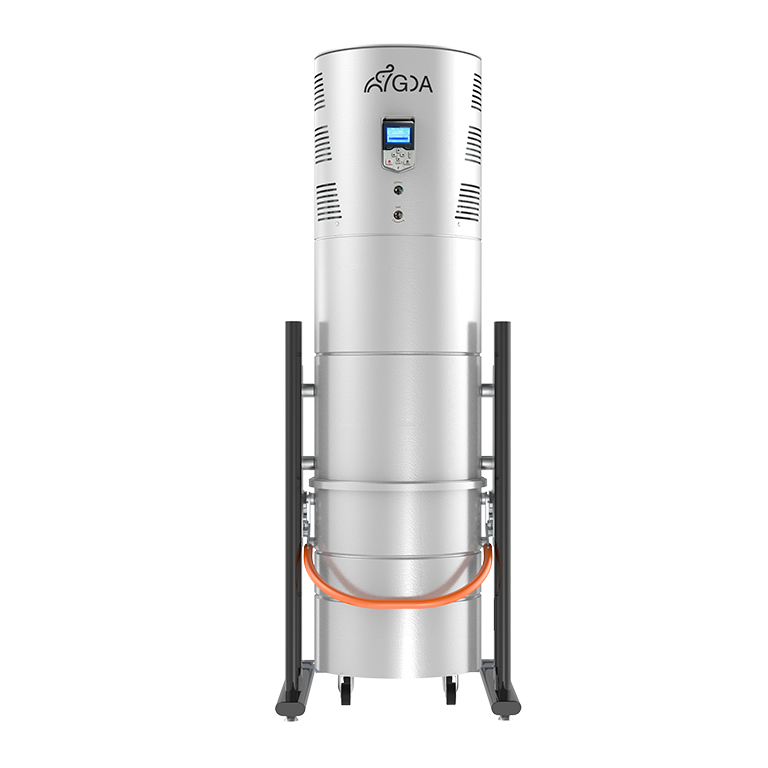

Monoblock Vacuum Units 126T and 126TA from 1 Operator
Inverter Monoblock: A high level of technology and performance, combined with low power consumption thanks to the inverter system, is packed into a single compact body.
Pressure transducer: Built-in sensor for real-time depression control.
Filter self-cleaning: Present on model 126TA, it ensures constant efficiency of suction capacity, reducing maintenance time.
LCD Display Panel: This is a user interface that allows easy and intuitive display of parameters and configurations of the Monoblock Power Plant (inverter parameters, self-cleaning, maintenance, and alarms) with favorite list and Self-cleaning times that can be modified according to the actual needs of the user.
Interfacing with Domotics: Prepared to be equipped with the four-output Relay module with which it is possible to connect to Domotics and receive reports of motor on, fault, container control, filter control.
Ease of installation: Thanks to the self-supporting frame with adjustable feet, it will be sufficient to place it in the intended room, connect the system inlet and air outlet piping, plug it into the electrical outlet, and the control unit is ready to be used.
Ease of installation: Thanks to the self-supporting frame with adjustable feet, it will be sufficient to place it in the intended room, connect the system inlet and air outlet piping, plug it into the electrical outlet, and the control unit is ready to be used.
Power on/off: Equipped as standard to be connected to the low voltage line of the inlet sockets. Connected to the external Wireless receiver or the patented Infinity Wireless System (IWS), it is controlled by the radio control built into the handle, with no need for electrical connections between the various inlet sockets.
Container removal: Quick release handle for dust container with wheels.
Main switch: Switch for protection and power supply of the central unit.
Monoblock
1 Operator Inverter

Monoblock.
126T
Material: Painted steel
Installation: Indoor or Outdoor protected from water
Dimensions: L. 65 – H. 179 – D. 72.5 cm
Noise: 59 dB (A)
Inverter: Yes
LCD display: Yes
Self-cleaning: No
Power supply: 400 V
Power: 3 kW
Airflow rate Max: 350 m³/h
Warranty: 5 years

Monoblock.
126TA
Material: Painted steel
Installation: Indoor or Outdoor protected from water
Dimensions: L. 65 – H. 179 – D. 72.5 cm
Noise: 59 dB (A)
Inverter: Yes
LCD display: Yes
Self-cleaning: Yes
Power supply: 400 V
Power: 3 kW
Airflow rate Max: 350 m³/h
Warranty: 5 years
LCD Diplay Panel.
Monoblock from 1 to 4 simultaneous operators
It is a user interface that easily and intuitively allows
to view parameters and configurations of the Monoblock Power Plant:
- Inverter parameters
- Self-cleaning
- Maintenance
- Alarms
with editable favorites list and Self-cleaning times,
according to the user’s actual needs. Standard on all models
Monoblock.
Included with the 1-operator Monoblock Central Unit
iFlex.
Compatible Application
Compatible with the Residential Central Line
Monoblock Inverter 1 Operator.
Vacuum Sockets.
Compatible Application
Compatible with the Residential Central Line
Monoblock Inverter 1 Operator.
Aria Suite.
Compatible Application
Compatible with the Residential Central Line
Monoblock Inverter 1 Operator.
