Industrial
Plant.
Whether you are designing a new plant, optimizing a production line
or looking for a reliable and technologically advanced solution
to improve your company’s efficiency, the GDA system is the perfect choice.
Industrial Line.
Ideal for outdoor installations in manufacturing environments
Pipes and Fittings in Galvanized Steel or where required in AISI 304 Steel, for outdoor installations or where electrical conductivity is required.
When special, abrasive, or electrostatic materials must be removed after production, galvanized steel pipes and fittings are the right choice.
Suitable for ATEX environments: it is possible to install this type of galvanized pipe and fittings, due to their electrical conductivity that allows them to connect with the plant’s grounding, ensuring maximum safety levels.
Easy installation by sealing joints without the use of glues or silicones.
The diameters of piping and fittings are 50, 63, 76, 102 mm; the sizing of the system will be designed according to the client’s needs.
The installation is completed with external industrial sockets.
Working hoses and cleaning accessories available in diameters ∅i 32, ∅i 38, ∅i 50, in conductive and antistatic versions.
Industrial Line
Industrial Plant

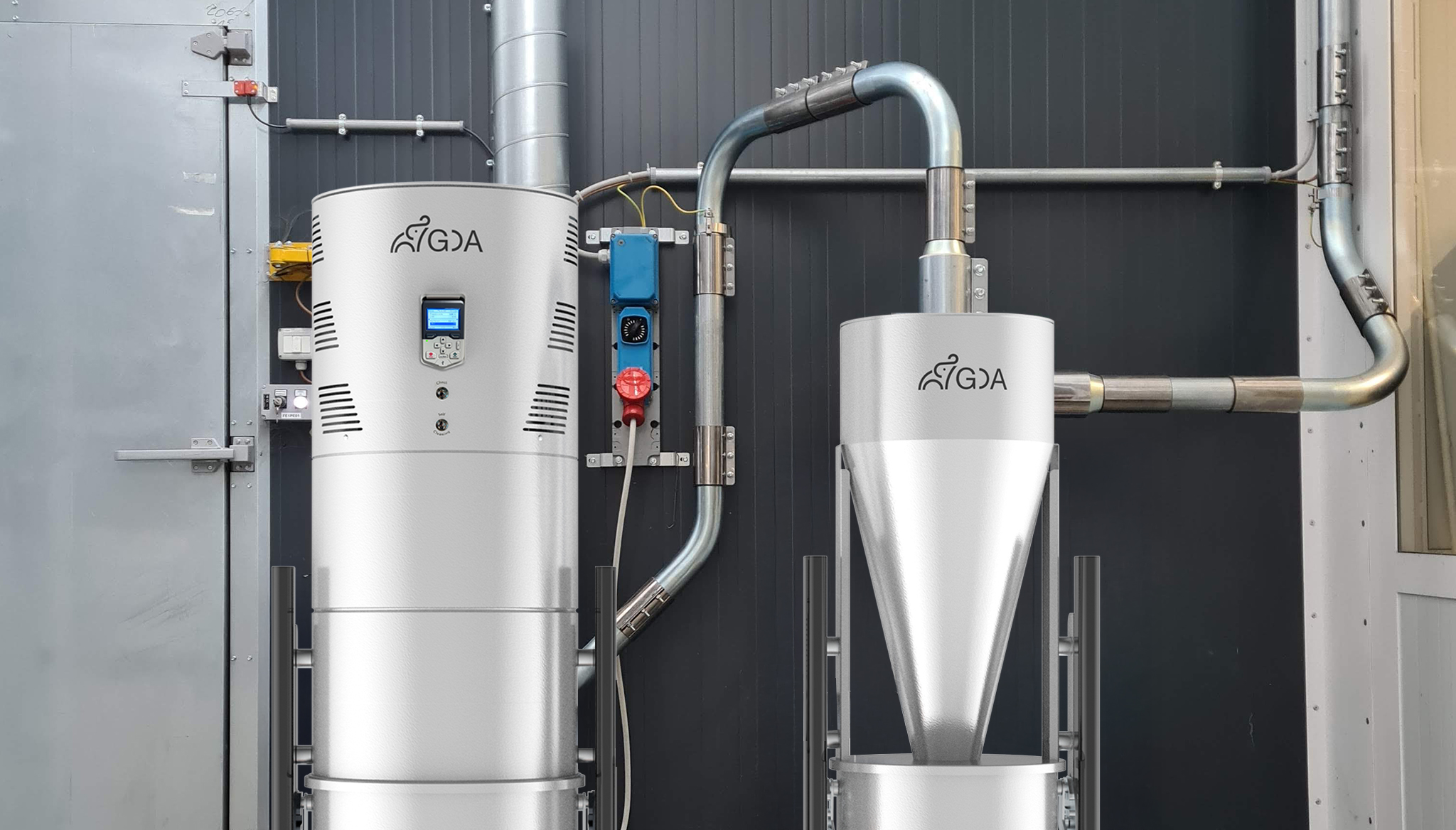

Central connected with steel piping

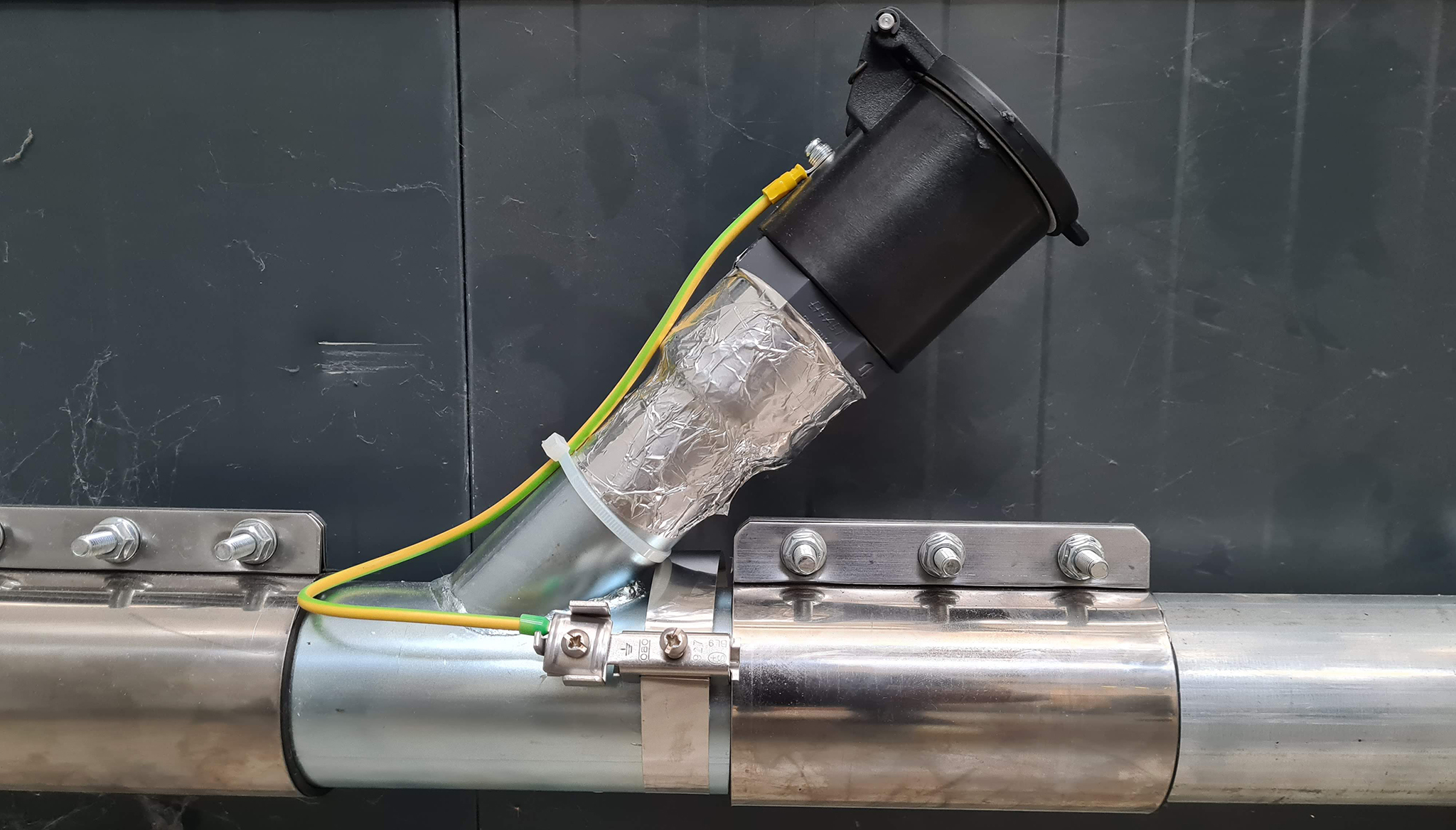

Line with shunt to the socket

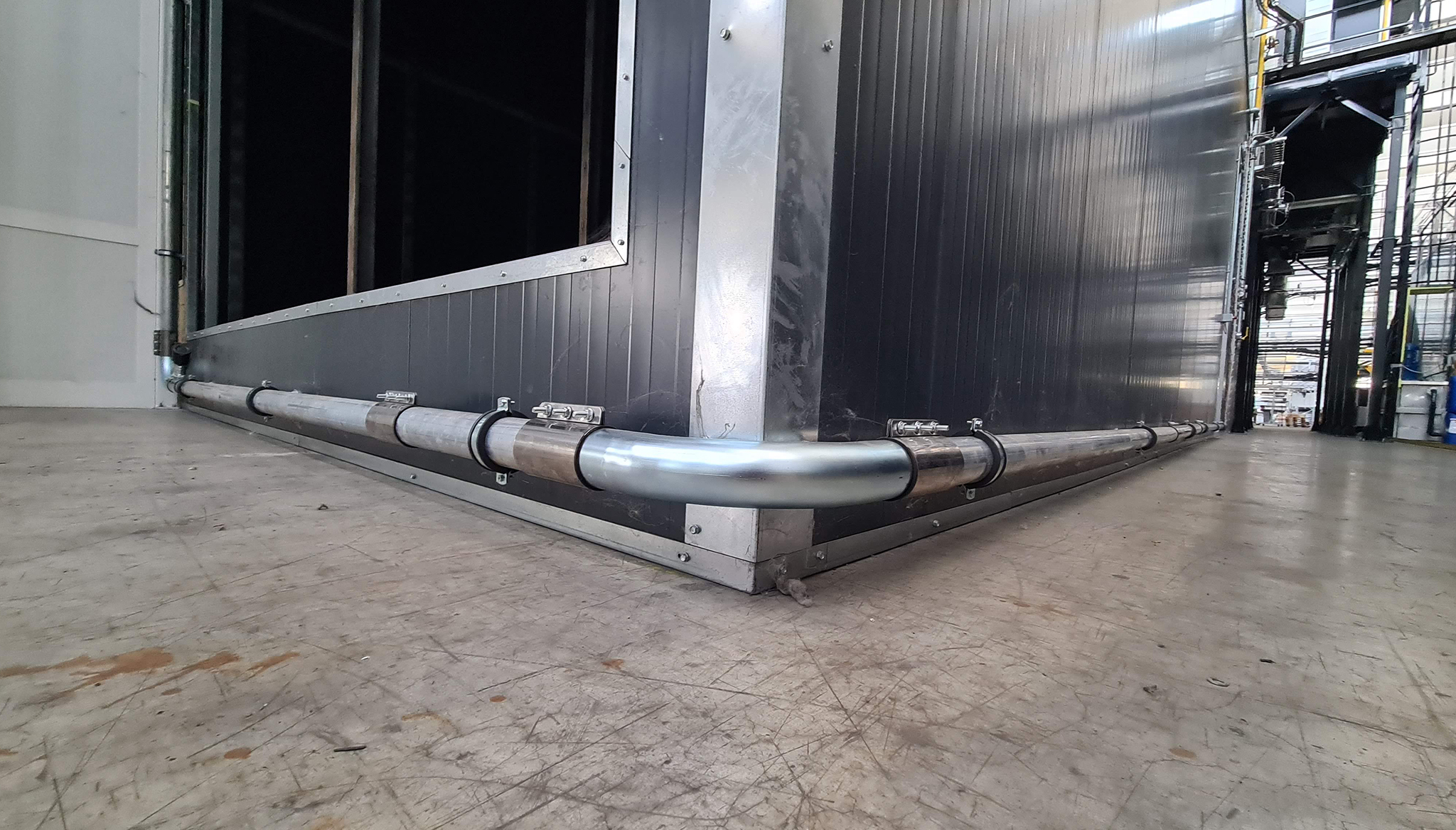

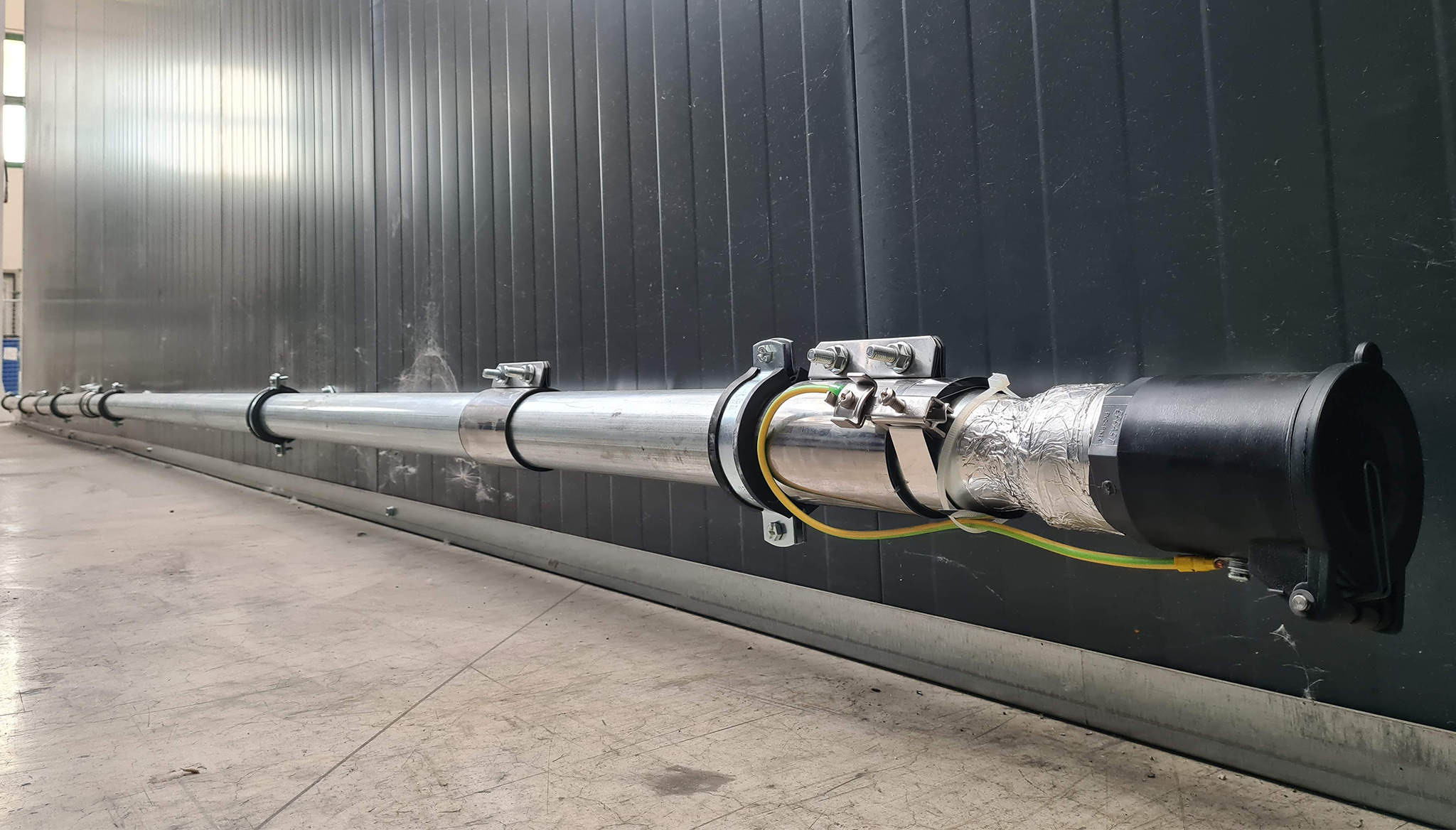

Wall bracketed line
In the Manufacturing, Food, Logistics Warehouses and Warehousing industries, it is important to maintain a clean working environment, vacuuming up processing waste, removing dust, fumes, vapors and other harmful substances from the air. A centralized industrial vacuum system ensures safety, worker health and improved productivity.
External Industrial Sockets.
Industrial Line Application
Made of PA6+30%FV, direct installation on D.50 or D.63 pipe.
Available with or without micro-contact for plant ignition.
Accessory coupling ∅i32, ∅i38 or ∅i50.
Also in Antistatic Version.
Dimensions: 138 x 81 mm
Industrial Sockets
Industrial Plant

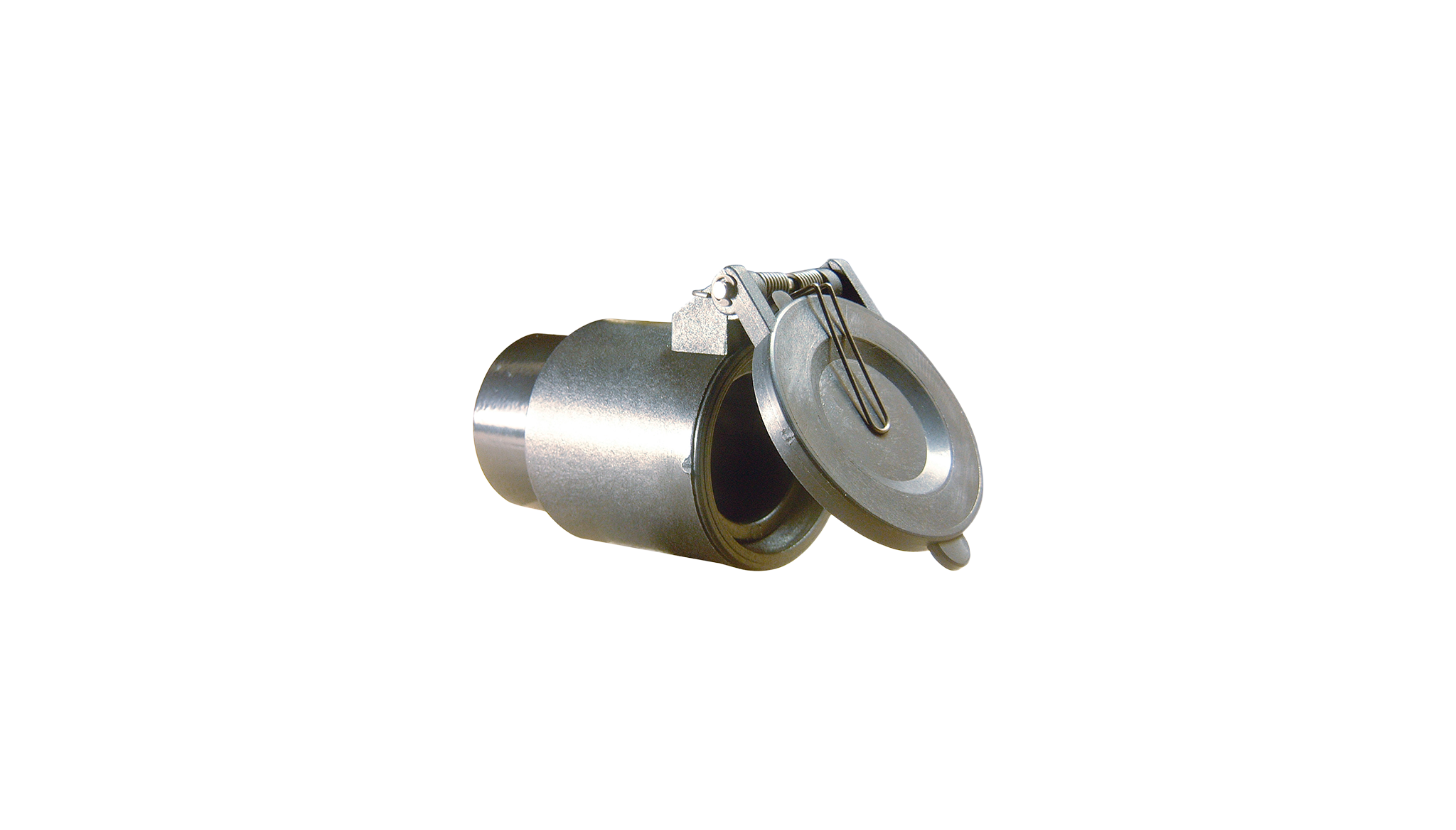

Industrial socket
Intake on steel plant

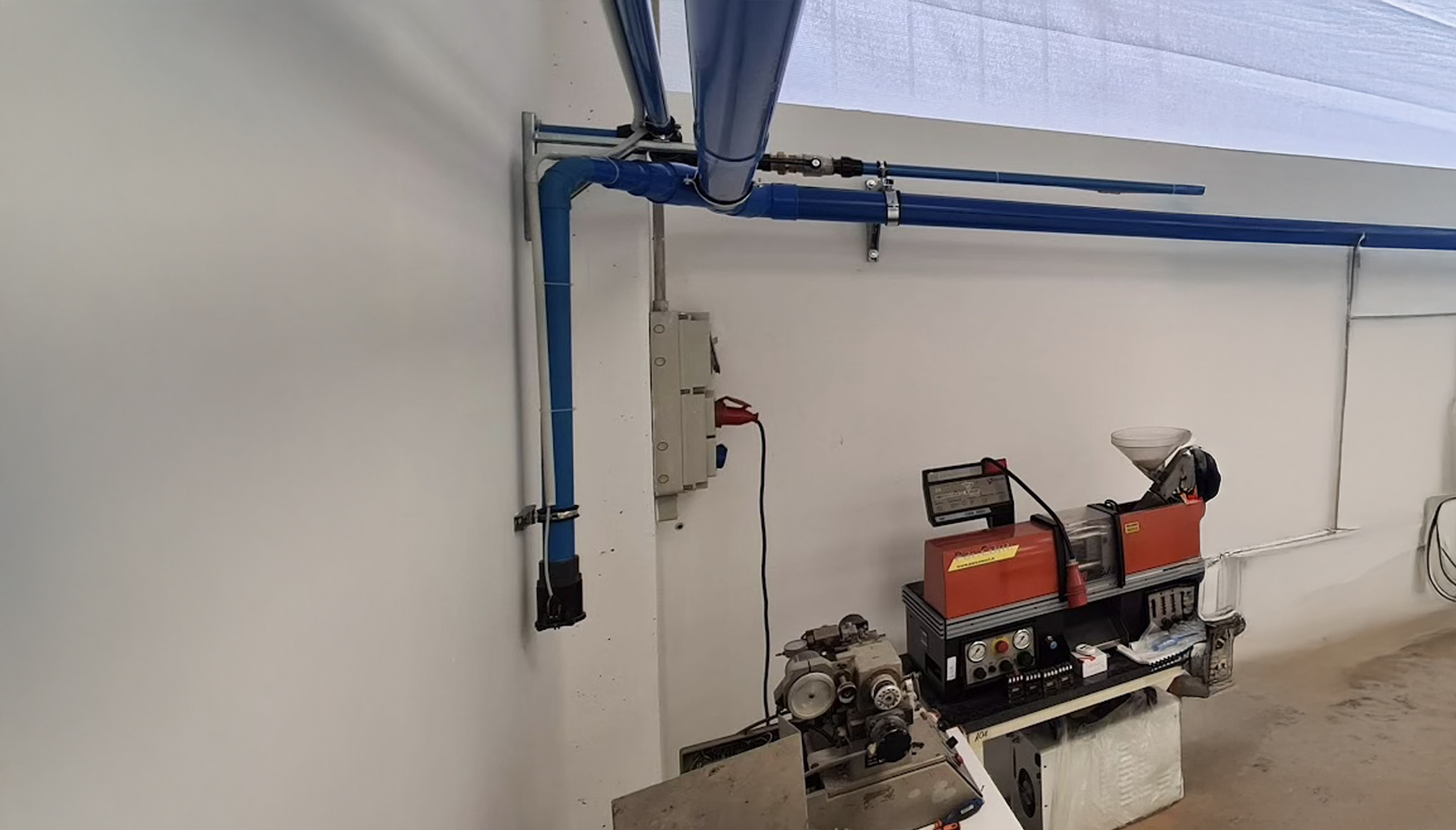

Intake on PVC plant.
Industrial Accessories D.38.
Industrial Applications
We offer a full range of 38 mm diameter industrial accessories, including conductive hoses and antistatic accessories, ideal for centralized vacuum systems in demanding industrial environments such as factories, workshops and laboratories, where powerful and efficient suction is required.
Accessories D.38
Industrial Plant

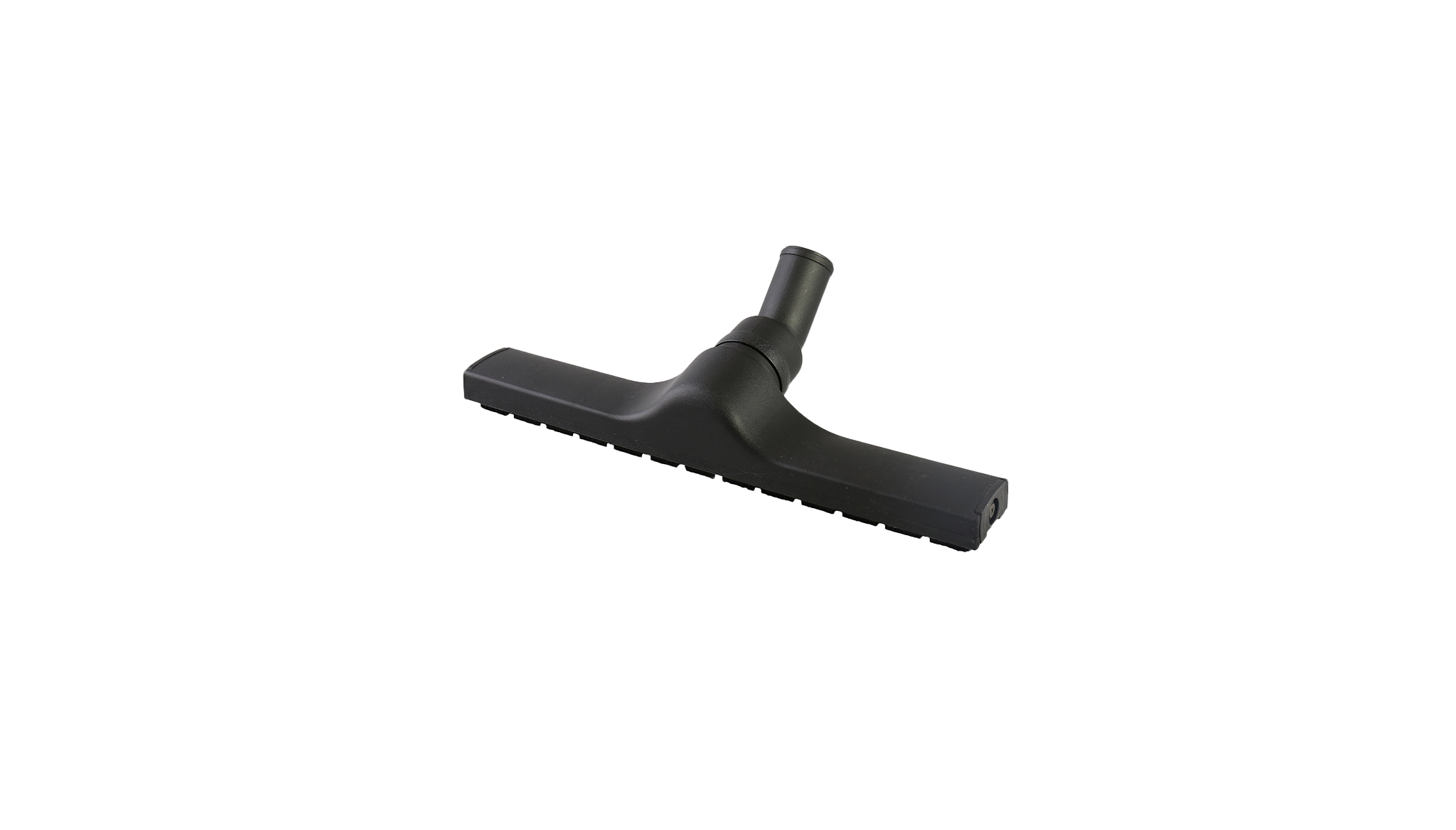

Antistatic brush for industrial floors

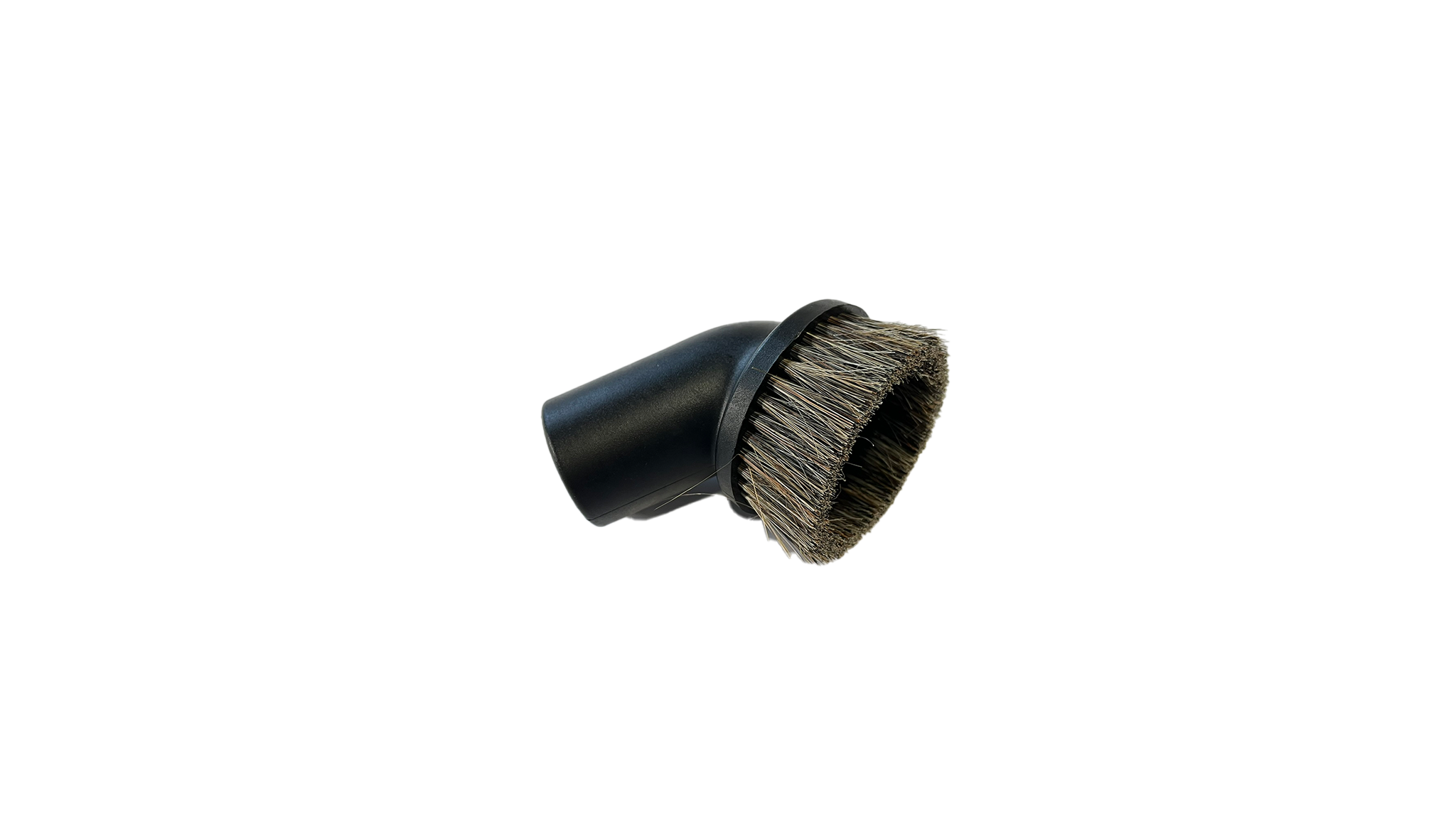

Antistatic brush with horsehair bristles

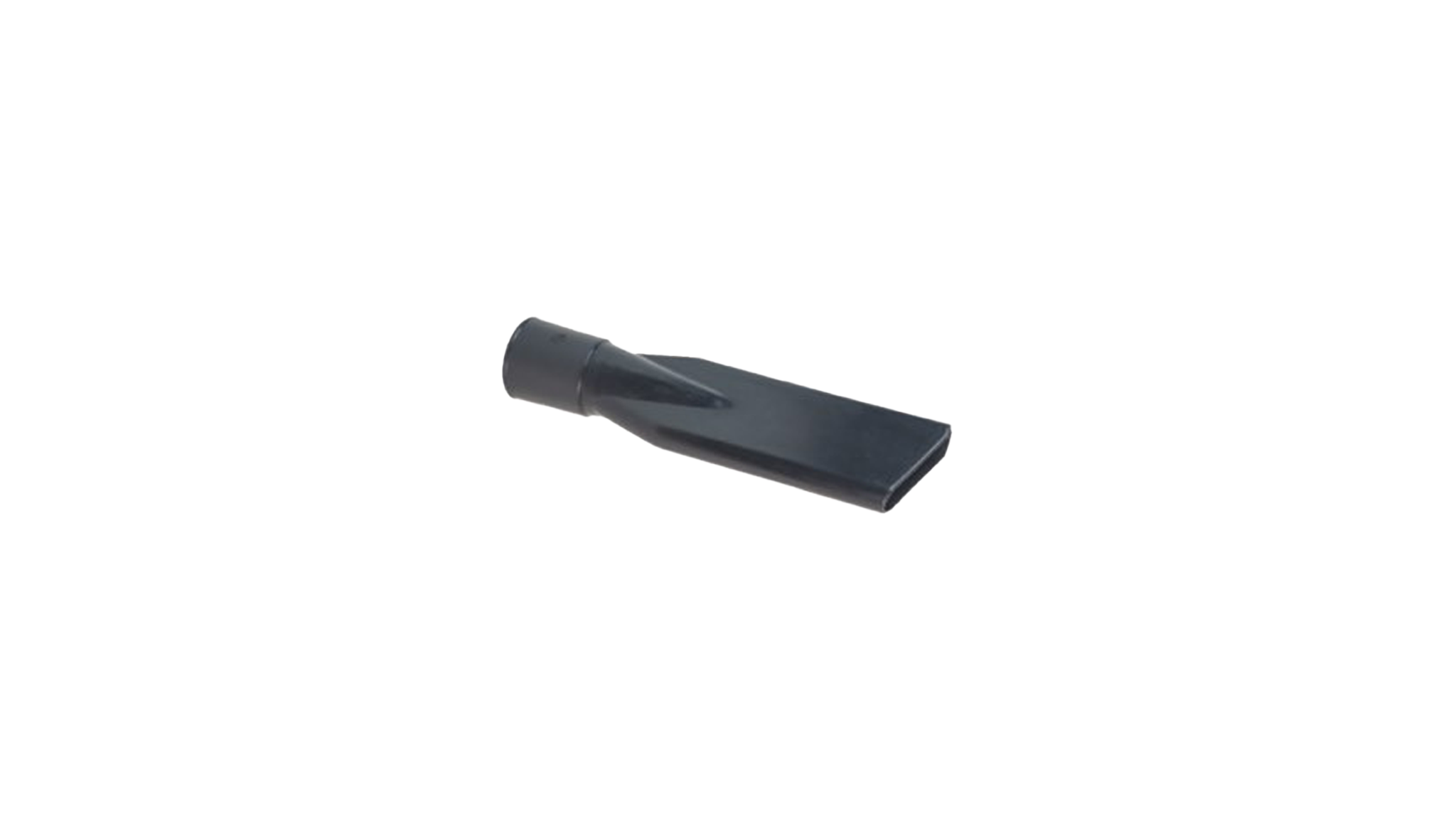

Antistatic Lance

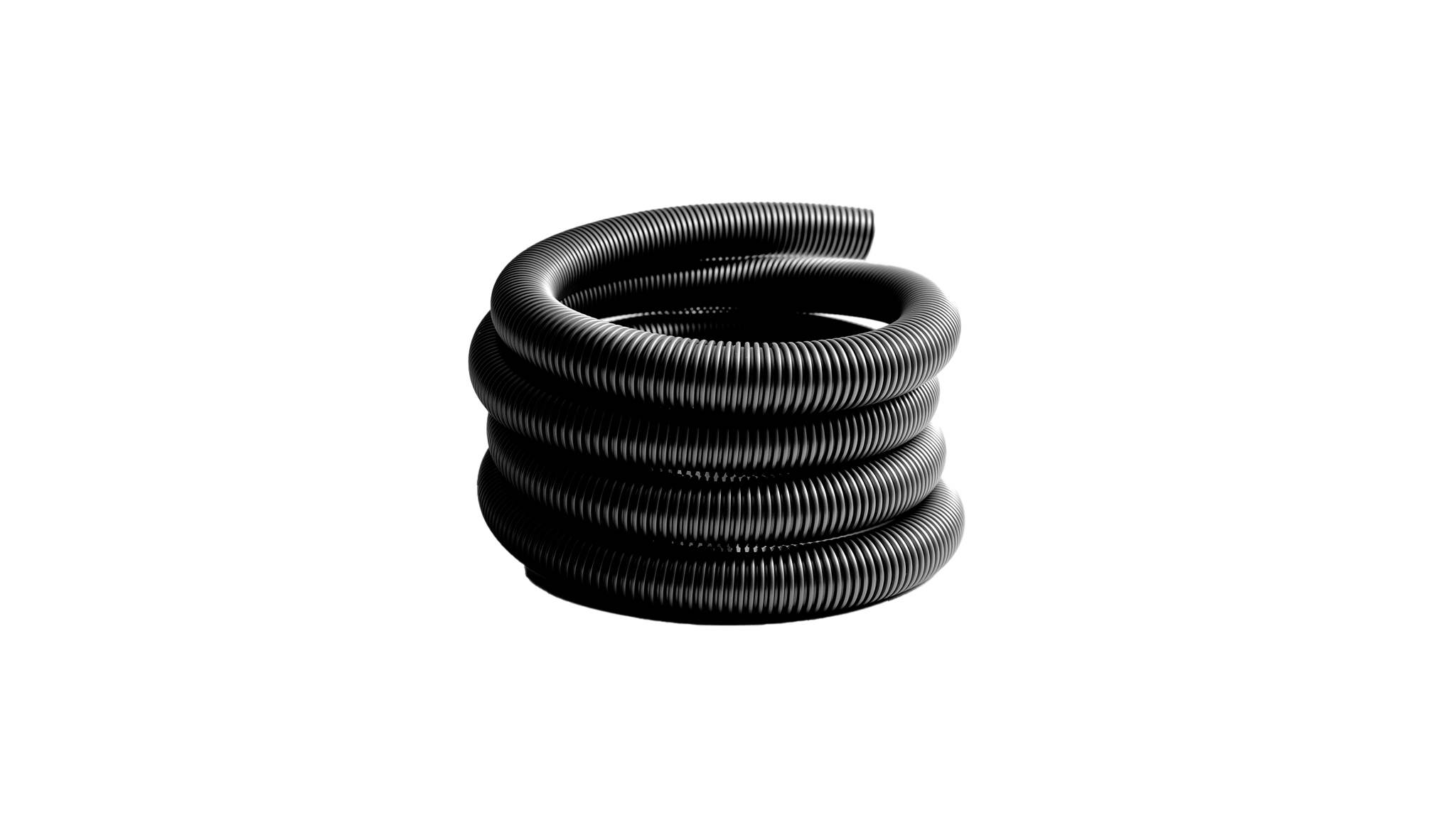

Conductive Tube D.38

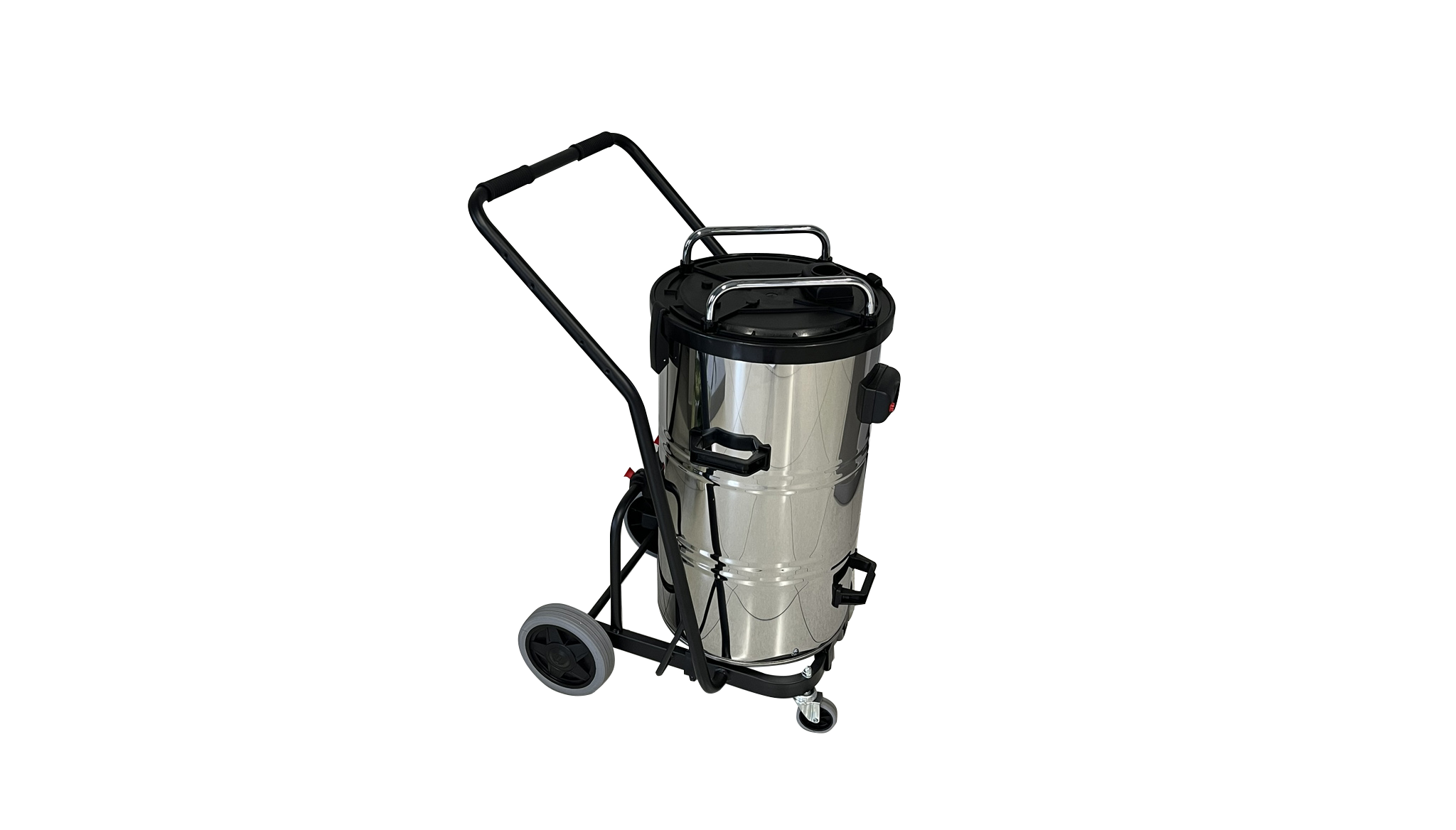

D.38 steel 60-liter liquid vacuum cleaner

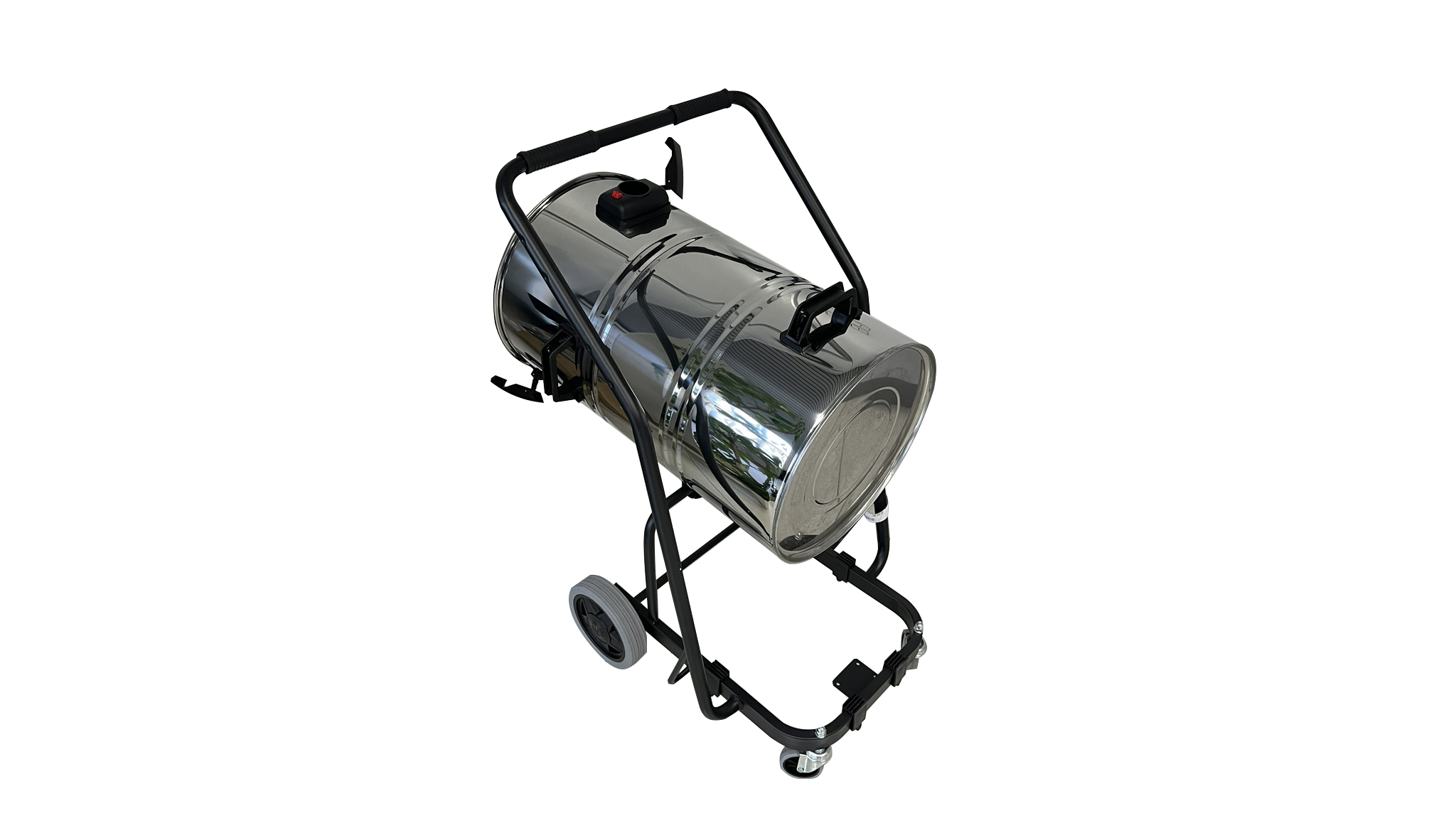

With trolley and tilting drum for emptying

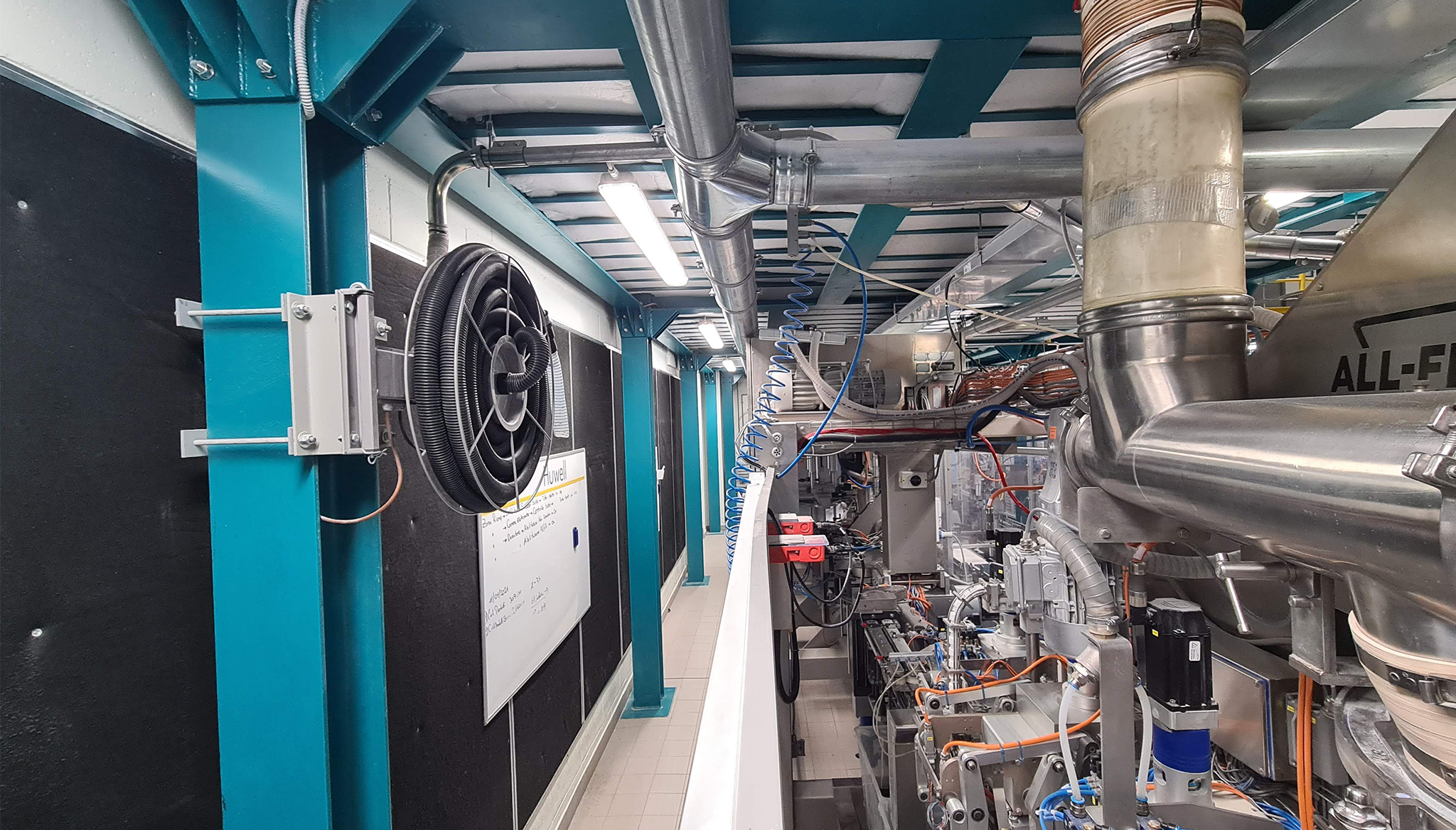

Hose reels.
Ideal for outdoor installations in manufacturing environments
The hose reel increases the efficiency and cleanliness of rooms. It connects directly to the external system pipeline.
Practical and convenient solution that reduces cleaning time as it is installed near strategic areas and is always ready for use.
Easy to use and reach, the operator only needs to pull the hose to start, the spring lever will lock the hose to the desired length activating suction. When released, the hose will automatically wind up turning off suction.
Available with tube ∅i 32 and ∅i 38. The tube is conductive, to prevent electrostatic charges.
Mounting possible in three ways: wall-mounted, ceiling-mounted or with the addition of a 1-, 2- or 3-meter suction arm that further increases its working area.

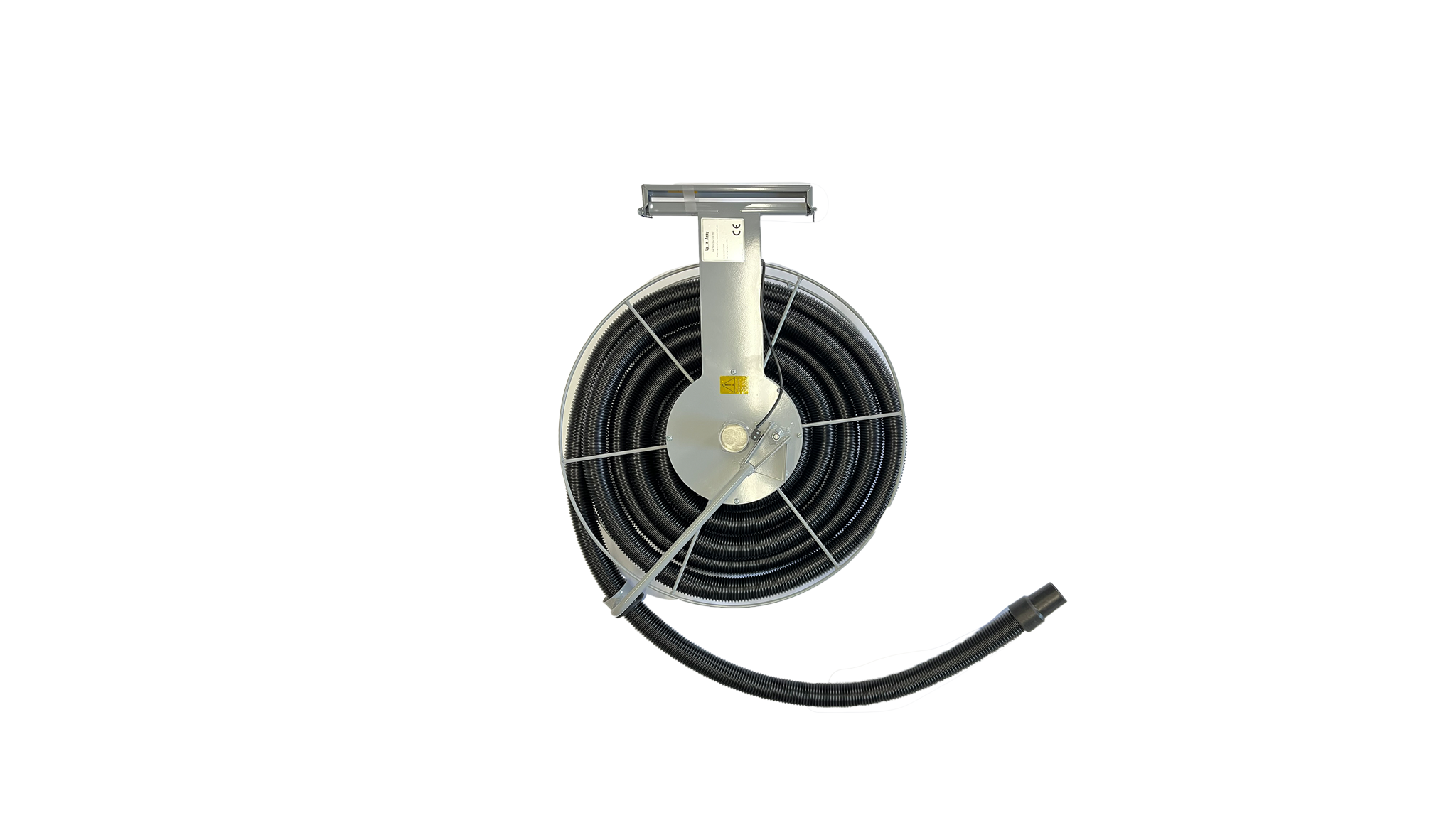

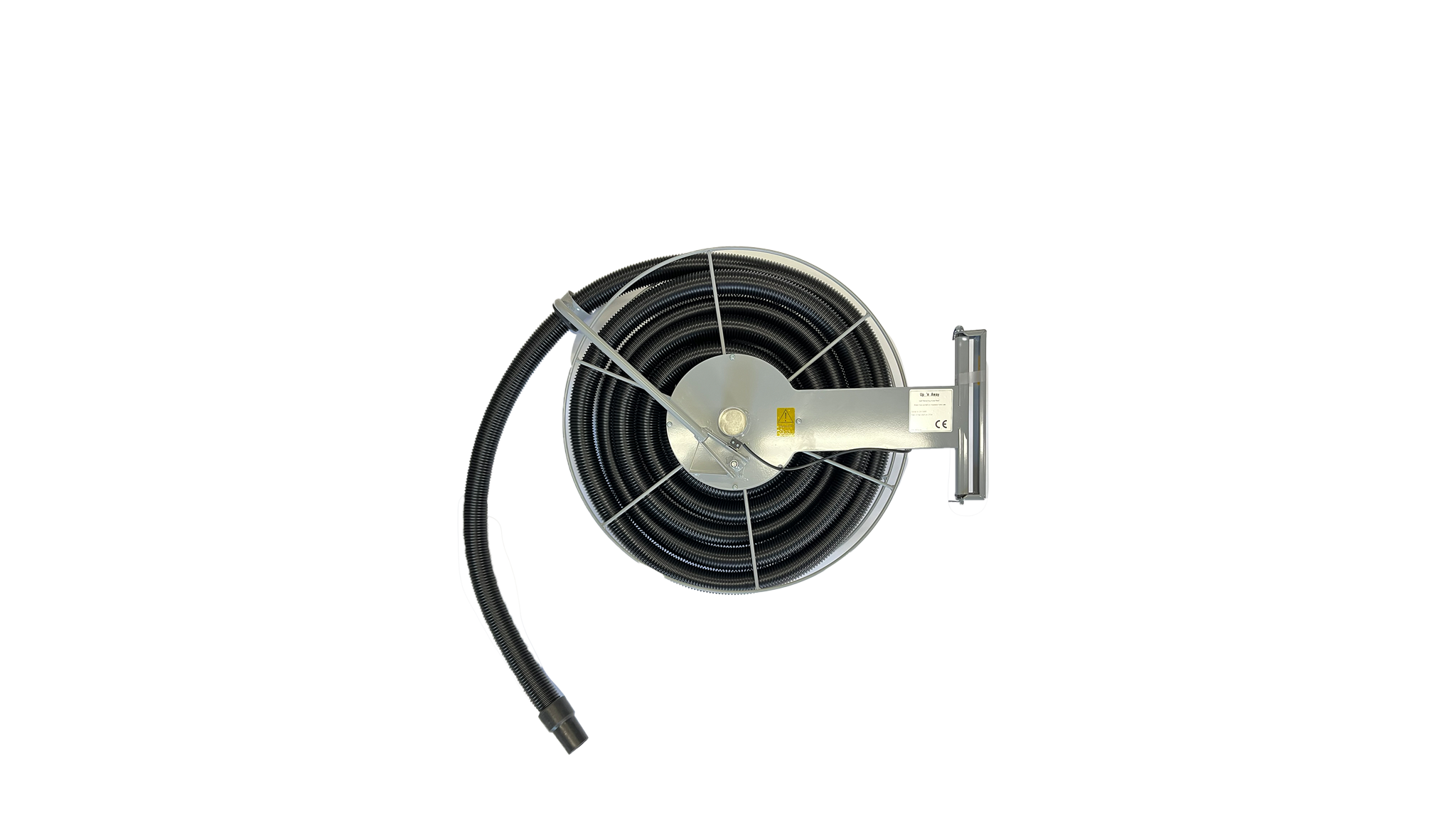

Hose reel
Industrial Plant
Wall mounting
Ceiling mounting
Bracketed mounting on column
