Monoblock Units.

Reduced power consumption and a self-cleaning filter system for constant suction capacity.
Use is for up to 4 simultaneous operators, and the application range is up to 5,000 square meters.

Deep Hygiene

Silent

Sure

Eco Friendly

Practical

Versatile

Technical characteristics.

Inverters from 1 to 4 simultaneous operators

Inverter Monoblock: A high level of technology and performance is packed into one compact body, combined with reduced consumption thanks to the inverter system. Turbine performance and related power consumption constantly vary and adjust according to the type of surface to be cleaned and the number of operators using the system, for a reduction in consumption of up to 50 percent.

Pressure transducer: Built-in sensor for real-time depression control.

Filter self-cleaning: Present on all models except 126T, it ensures constant efficiency of suction capacity, reducing maintenance time.

LCD Display Panel: It is a user interface that allows easy and intuitive display of parameters and configurations of the Monoblock Power Plant (inverter parameters, self-cleaning, maintenance, and alarms) with favorites list and Self-cleaning times that can be modified according to the user’s actual needs. Possibility to remote the Display Panel.

Interfacing with Domotics: Prepared to be equipped with the four-output Relay module with which it is possible to connect to Domotics and receive reports of motor on, fault, container control, filter control.

Ease of installation: Thanks to the self-supporting frame with adjustable feet, it will be sufficient to place it in the intended room, connect the system inlet and air outlet piping, plug it into the electrical outlet, and the control unit is ready to be used.

Power on/off: Equipped as standard to be connected to the low voltage line of the inlet sockets. Connected to the external Wireless receiver or the patented Infinity Wireless System (IWS), it is controlled by the radio control built into the handle, with no need for electrical connections between the various inlet sockets.

Container removal: Quick release handle for dust container with wheels.

Main switch: Switch for protection and power supply of the central unit.

Monoblock

Inverter from 1a 4 simultaneous operators

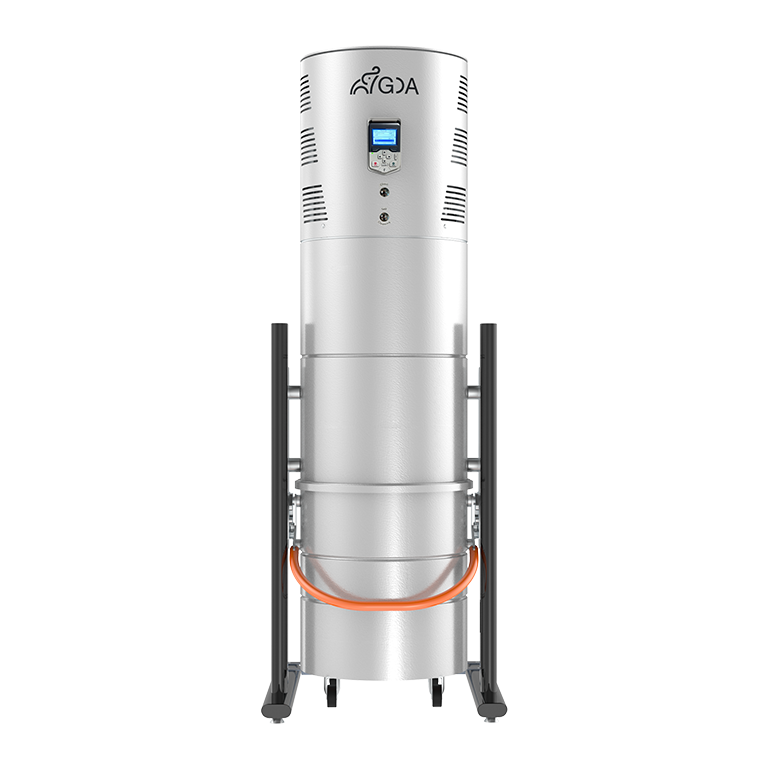

Monoblock.

126T and 126TA

Operators: 1
Material: Painted steel
Installation: Indoor or Outdoor protected from water
Dimensions: L. 65 – H. 179 – D. 72.5 cm
Noise: 59 dB (A)
Inverter: Yes
LCD display: Yes
Self-cleaning 126T: 126T No – 126TA Yes
Power supply: 400 V
Power: 3 kW
Airflow rate Max: 350 m³/h
Warranty: 5 years

Download the data sheet

Monoblock.

238TA

Operators: 2
Material: Painted steel
Installation: Indoor or Outdoor protected from water
Dimensions: L. 65 – H. 179 – D. 72.5 cm
Noise level: 62.5 dB (A)
Inverter: Yes
LCD display: Yes
Self-cleaning: Yes
Power supply: 400 V
Power: 3.8 kW
Airflow rate Max: 470 m³/h
Warranty: 5 years

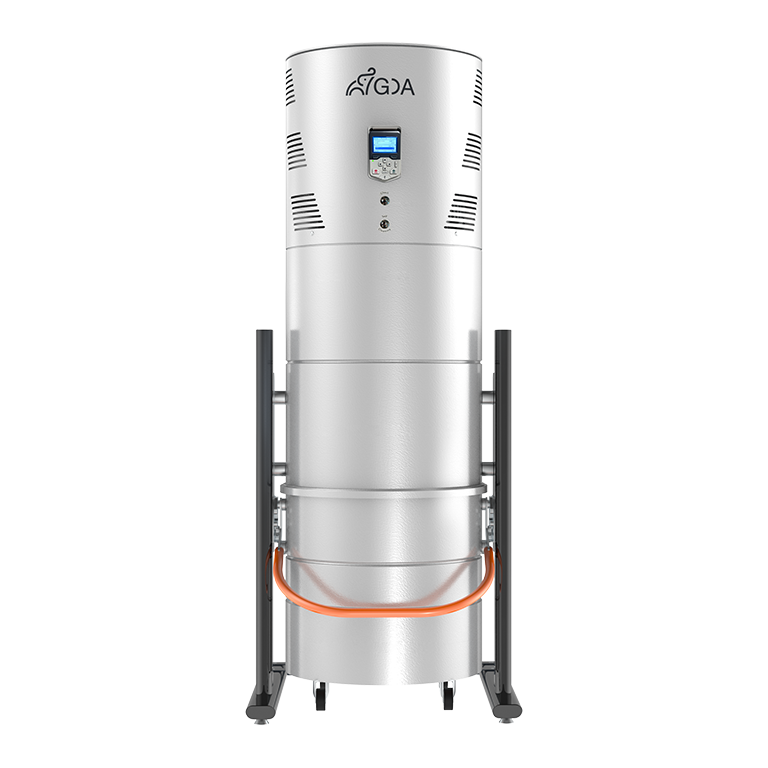

Monoblock.

350TA

Operators: 3
Material: Painted steel
Installation: Indoor or Outdoor protected from water
Dimensions: L. 74 – H. 182 – D. 81.5 cm
Noise: 66 dB (A)
Inverter: Yes
LCD display: Yes
Self-cleaning: Yes
Power supply: 400 V
Power: 5 kW
Airflow rate Max: 530 m³/h
Warranty: 5 years

Monoblock.

469TA

Operators: 4
Material: Painted steel
Installation: Indoor or Outdoor protected from water
Dimensions: L. 74 – H. 182 – D. 81.5 cm
Noise level: 67 dB (A)
Inverter: Yes
LCD display: Yes
Self-cleaning: Yes
Power supply: 400 V
Power: 6.9 kW
Airflow rate Max: 685 m³/h
Warranty: 5 years

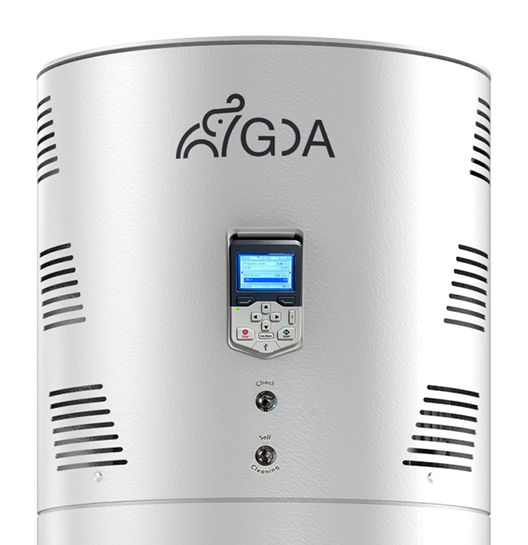

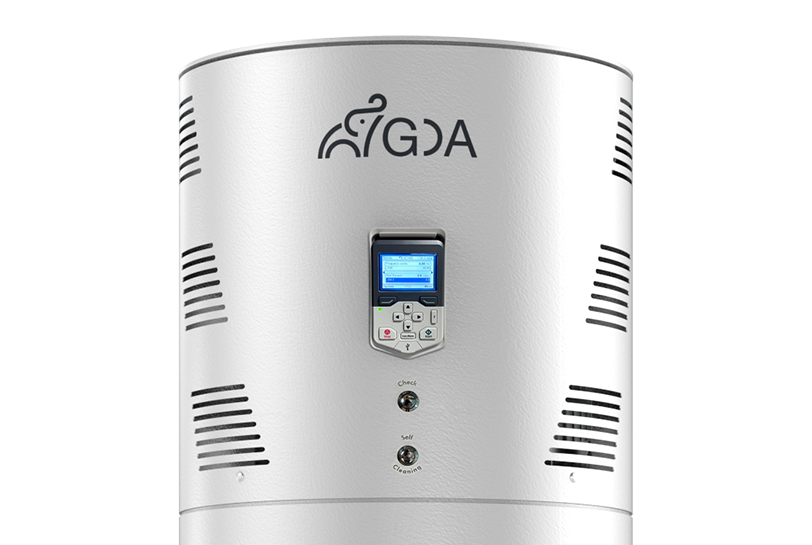

LCD Diplay Panel.

Monoblock from 1 to 4 simultaneous operators

It is a user interface that easily and intuitively allows
to view parameters and configurations of the Monoblock Power Plant:

  • Inverter parameters
  • Self-cleaning
  • Maintenance
  • Alarms

with editable favorites list and Self-cleaning times,
according to the user’s actual needs. Standard on all models

Monoblock.

Equipped with the Professional Monoblock Central Unit

  • Warranty 5 years
  • Inverter
  • LCD display
  • Quick front button for maintenance reset
  • Front quick button for manual filter self-cleaning
  • Filter Self-Cleaning System (except for model 126T)
  • Included in the package: 1 Silencer, 1 90° Bend, 1 FF Sleeve, 1 Increase (all galvanized steel for air expulsion); 2 rubber sleeves and 4 metal clamps for connecting piping to the monoblock; 1 dust collection bag.

iFlex.

Compatible Application

Compatible with the Residential Central Line
Monoblock Inverter 1 Operator.

Vacuum Sockets.

Compatible Application

Compatible with the Residential Central Line
Monoblock Inverter 1 Operator.

Aria Suite.

Compatible Application

Compatible with the Residential Central Line
Monoblock Inverter 1 Operator.

Vortex Pre-Separator.

Vortex is the cyclonic preseparator that intercepts more than 98% of sucked dust, thanks to the principle of cyclonic motion, with no filter to clean inside. It preserves the single-block and commercial suction unit, greatly improving the effectiveness of the self-cleaning system in environments with large amounts of fine dust.
It can be integrated into all already installed systems and is recommended in places where large amounts of fine dust are sucked in.

Integration with Monoblock and Commercial
