Commercial Vacuum Units.
High performance and low consumption to ensure high levels of cleanliness. Models of 5 and 7 simultaneous operators for areas from 4,000 to 10,000 sqm.
with the possibility of modulating more central units to increase simultaneity and coverage of larger areas.
Technical characteristics.
Inverters from 5 to 7 simultaneous operators
Commercial Inverter Power Plant: Consisting of side channel suction turbine coupled with brushless electric motor, cyclonic dust collection separator, electrical panel with inverter. The performance of the turbine and its electrical consumption constantly vary and adjust according to the type of surface to be cleaned and the number of operators using the system, for a reduction in consumption of up to 50 percent.
Pressure transducer: Built-in sensor for real-time depression control.
Filter self-cleaning: Ensures constant efficiency of suction capacity, reducing maintenance time.

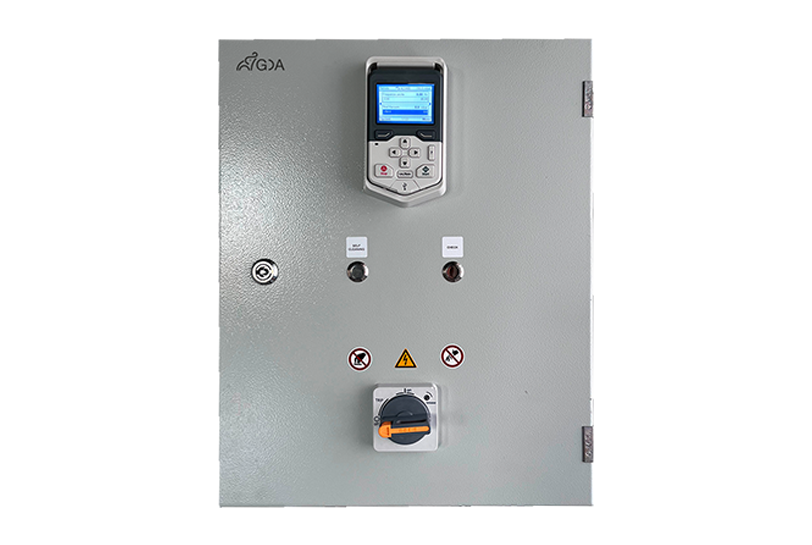

LCD Display Panel: a user interface that makes it easy and intuitive to display parameters and configurations of the Commercial Power Plant (inverter parameters, self-cleaning, maintenance and alarms) with favorites list and Self-cleaning times that can be modified according to the user’s actual needs. Possibility of remoting the Display Panel.
Interfacing with Domotics: Prepared to be equipped with the four-output Relay module with which it is possible to connect to Domotics and receive signals of motor on, fault, container control, filter control.
Installation: The Commercial Plant consists of three elements that can be installed at varying distances according to the needs of the technical room. The side channel suction turbine allows installation in both vertical and horizontal positions.
Power on/off: Equipped as standard to be connected to the low voltage line of the inlet sockets. Connected to the patented IWS system, it is controlled by the radio control built into the handle, with no need for electrical connections between the various inlet sockets.
Container removal: Quick release handle for dust container with wheels.
Main switch: Switch for protection and power supply of the central unit.
Commercial
Inverters from 5 to 7 Operators

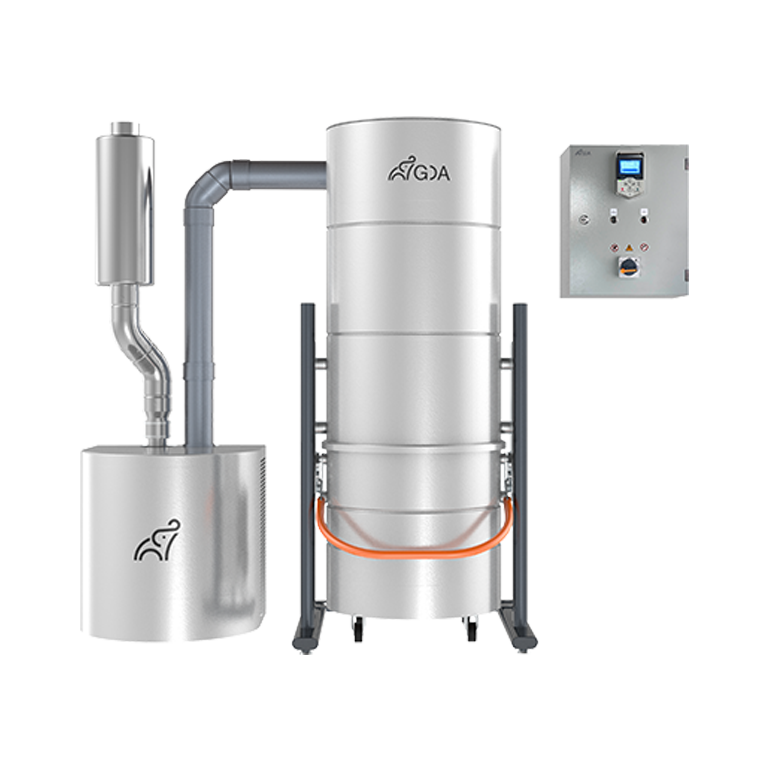

Commercial.
595T120AIB
Number of Operators: 5
Working Area: 4000/5000 m²
Installation: Indoor or Outdoor water protected
Noise: 74 dB (A)
Inverter: Yes
LCD display: Yes
Self-cleaning: Yes
Power supply: 400 V
Power: 9.5 kW
Airflow rate Max: 860 m³/h
Warranty: 5 years
Commercial.
713T120AIB
Number of Operators: 7
Working Area: 5000/7000 m²
Installation: Indoor or Outdoor water protected
Noise: 74.5 dB (A)
Inverter: Yes
LCD display: Yes
Self-cleaning: Yes
Power supply: 400 V
Power: 12.6 kW
Airflow rate Max: 1100 m³/h
Warranty: 5 years

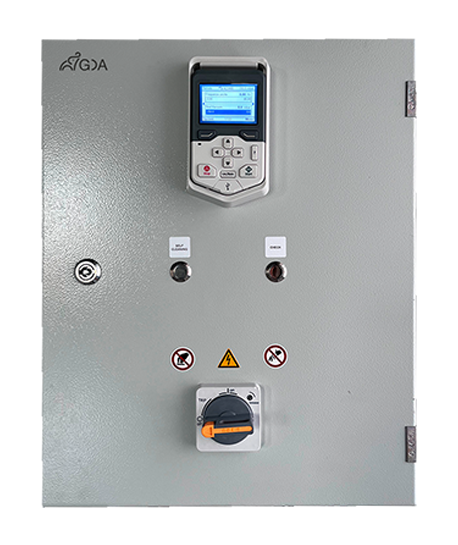

LCD Diplay Panel.
Commercial 5 to 7 Simultaneous Operators
It is a user interface that easily and intuitively allows
to view parameters and configurations of the Business Central:
- Inverter parameters
- Self-cleaning
- Maintenance
- Alarms
with editable favorites list and Self-cleaning times,
according to the user’s actual needs. Standard on all models
Commercial.
Equipped with the Commercial Professional Central
- Warranty 5 years
- Side channel turbine coupled with brushless electric motor
- Soundproofing Box
- Electrical panel with Inverter
- LCD display
- Quick front button for maintenance reset
- Front quick button for manual filter self-cleaning
- Cyclonic Separator with Filter Self-Cleaning System
- Included in the package: Galvanized steel silencer and fittings for connection to turbine; PVC fittings for connection between turbine and separator; 2 rubber sleeves and 4 metal clamps for connecting piping to separator; 1 dust collection bag.
Vacuum Sockets.
Compatible Application
Compatible with the Residential Line, Power Plants
Monoblock and Commercial from 1 to 7 Operators.
Aria Suite.
Compatible Application
Compatible with the Residential Line, Power Plants
Monoblock and Commercial from 1 to 7 Operators.
Vortex Pre-Separator.
Vortex is the cyclonic preseparator that intercepts more than 98% of the dust sucked in, thanks to the principle of cyclonic motion, with no filter to clean inside. It preserves the single-block and commercial suction unit, greatly improving the effectiveness of the self-cleaning system in environments with large amounts of fine dust.
It can be integrated into all already installed systems and is recommended in places where large amounts of fine dust are sucked in.
Smart technology.
Always connected through an iconic language that reflects General D'Aspirazione mission and communication.
