Solutions
Plant.
Whether you are building a new home, remodeling or
looking for a practical and refined solution to improve the comfort
of your home, the GDA system is the perfect choice.
iFlex line.
Ideal for new construction installations.
iFlex is the innovative GDA System that hides the hose directly inside the pipe. Pipes and fittings specially designed for the iFlex system are 50.8 mm in diameter.
The backup box is suitable for installation in both masonry and plasterboard walls.
The installation of the system can be in the floor or in the suspended ceiling.
Coverage Area: Each outlet is equipped with 12 m flexible hose that covers an area of about 90-100 square meters. The hose retracts into the same 50.8 mm pipe as prepared, with no additional space inside the walls.
iFlex Line
Plant Solutions

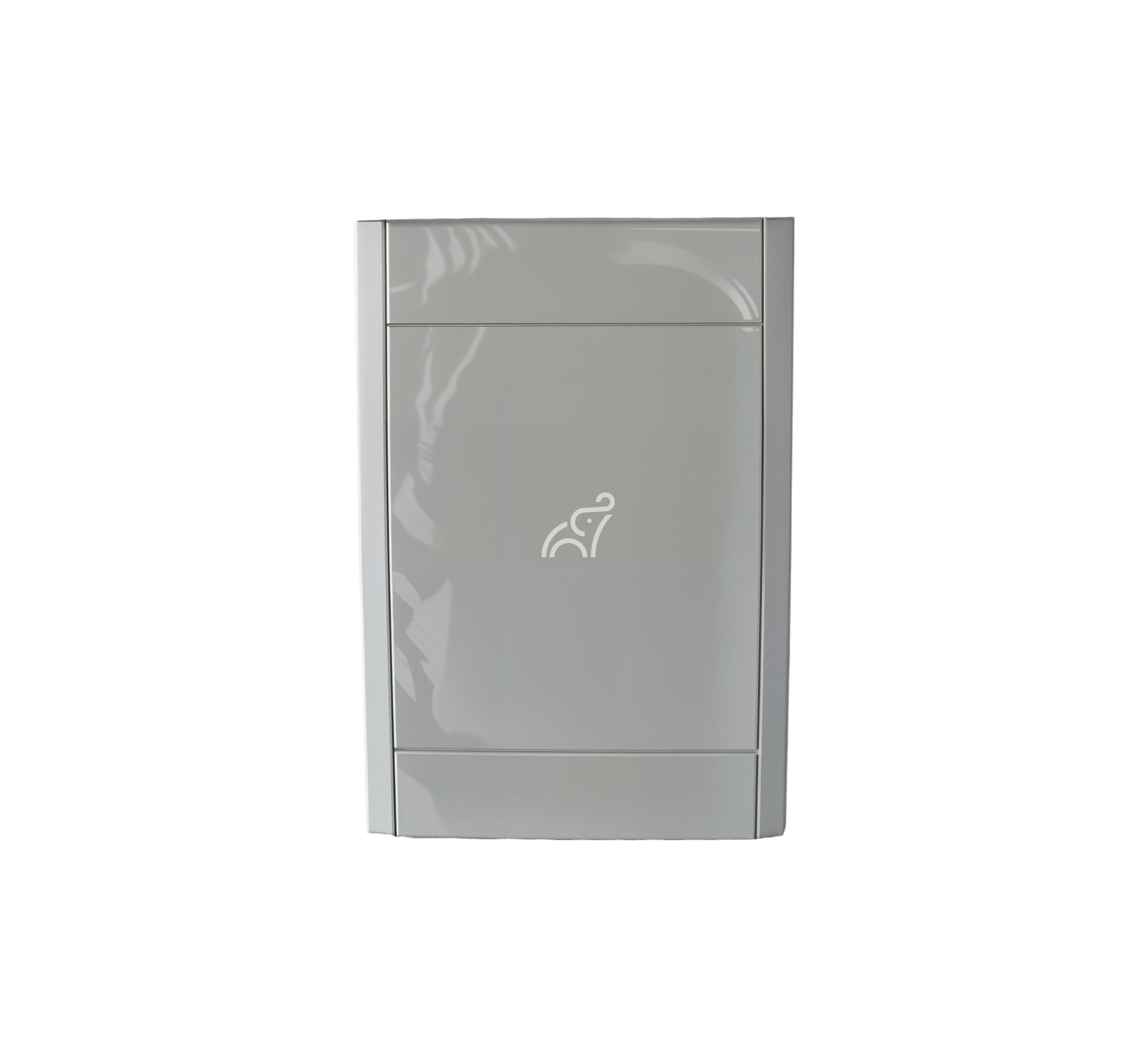

White standard iFlex wall outlet. Color customizable from RAL chart.

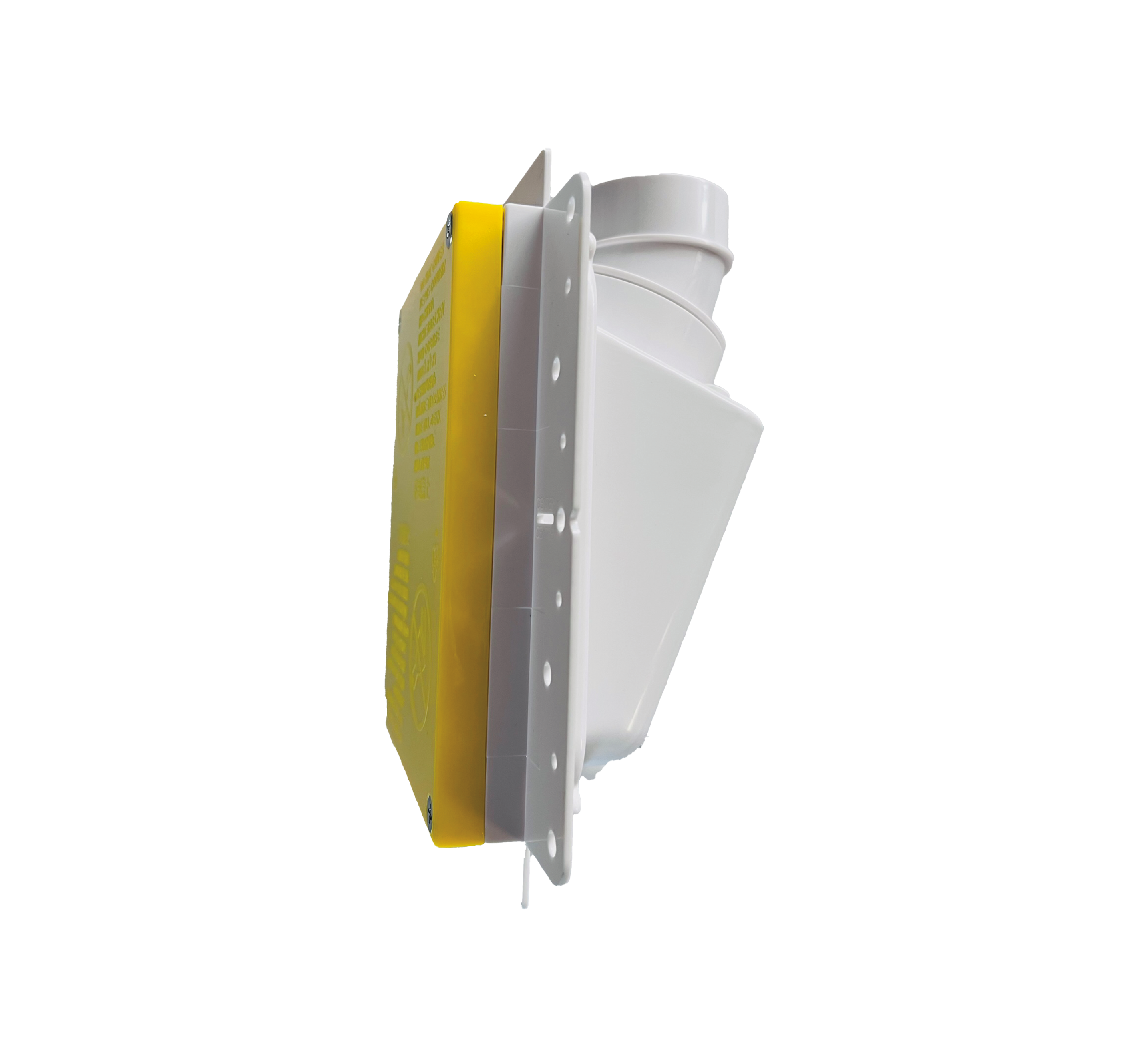

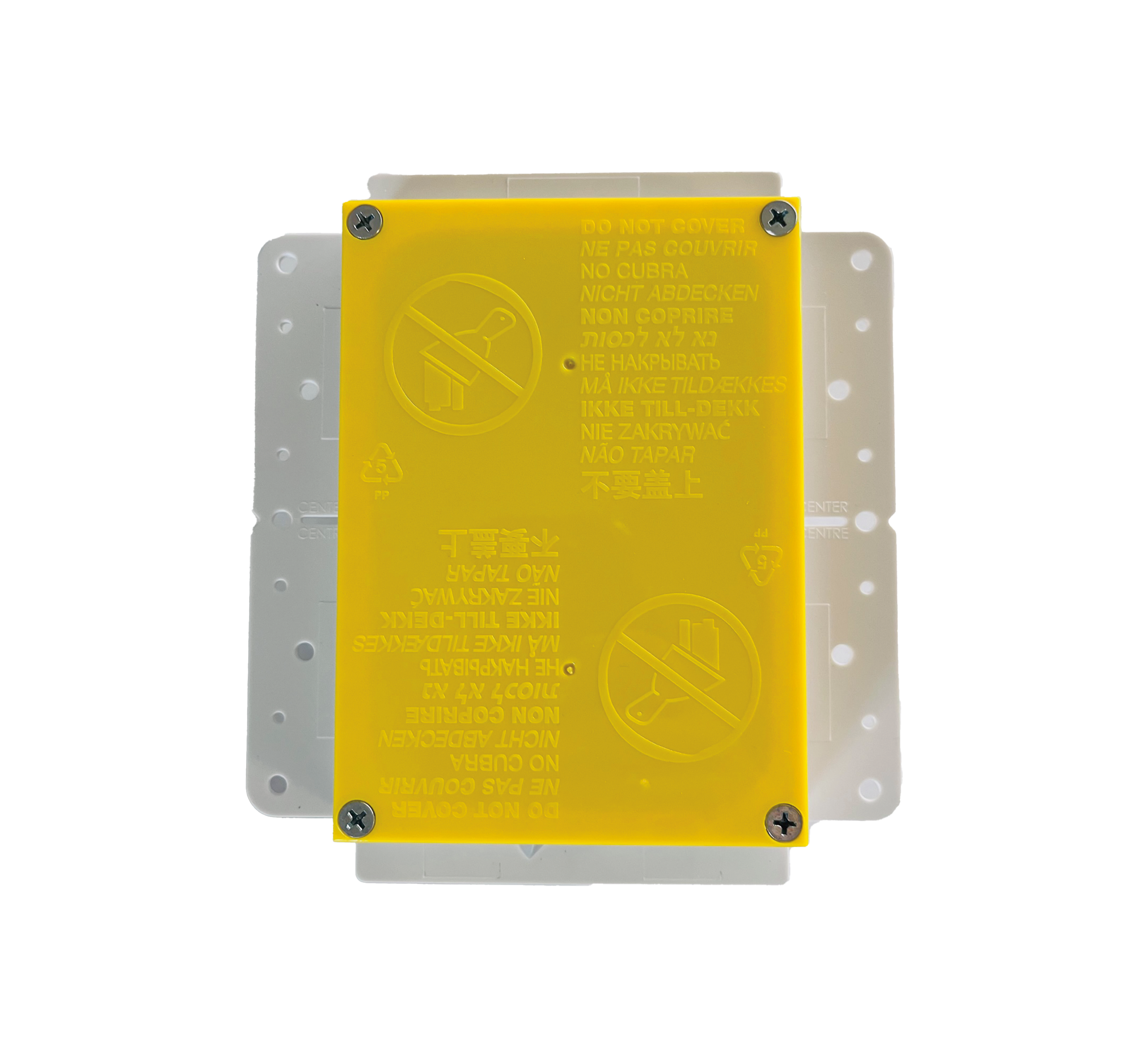

Counter iFlex. The most compact box on the market! Dimensions: D. 89 – H. 150 – W. 108 mm. Yellow lid remains outside flush with plaster.
Excursion of up to 15 mm to better adapt to uneven surfaces or different plaster thicknesses and to better adjust the grip setting
Traditional Line.
Ideal for new construction installations
It is often believed that one pipe is as good as the other, but it is not!
All GDA material is designed and manufactured to do one job: suck in air with everything it can carry, preventing any object from stopping in its path.

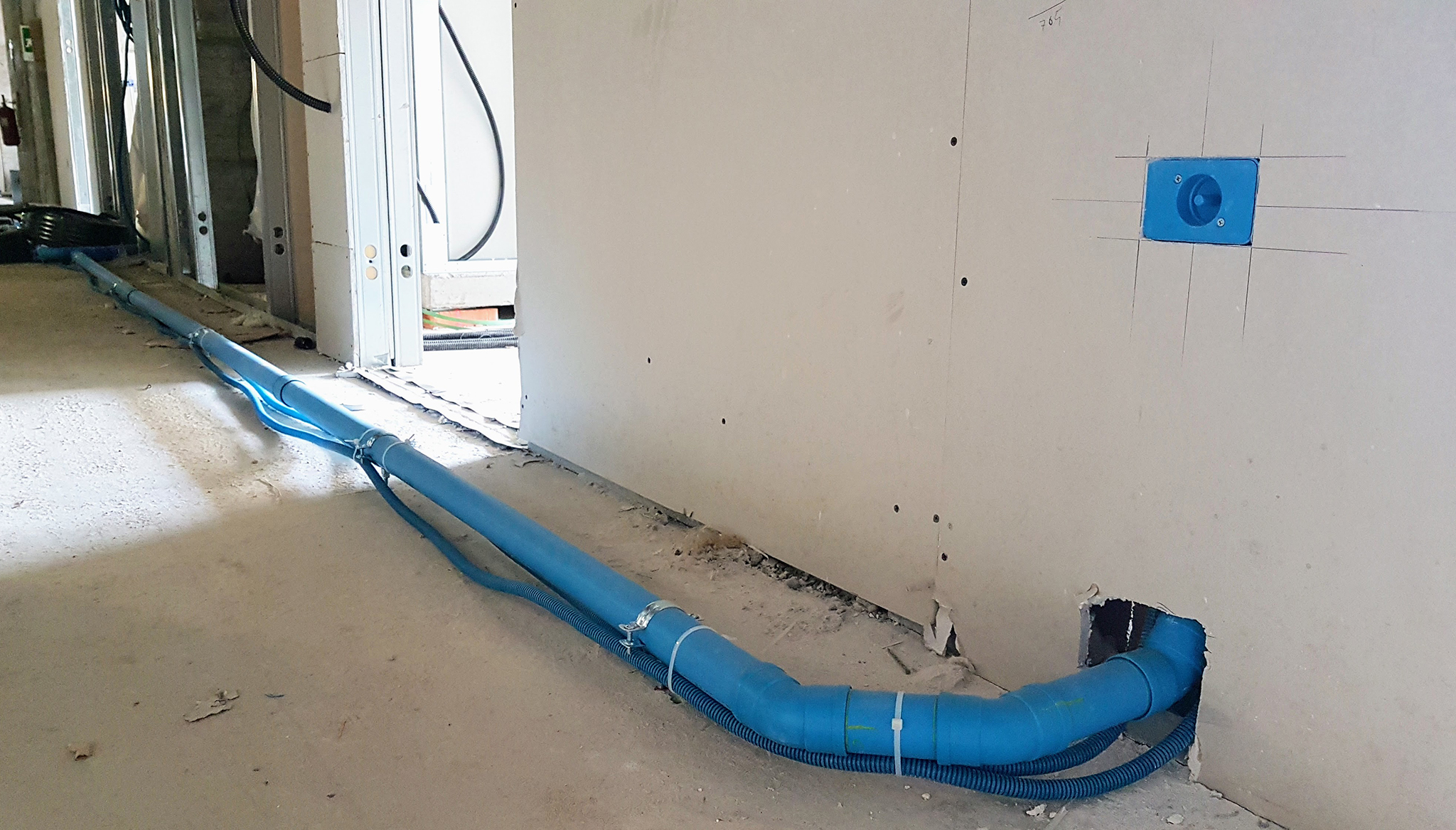

Traditional plumbing consists of a network of PVC and ABS pipes and fittings laid on the floor or false ceiling, connecting the central vacuum unit to inlets that can be installed on the wall, floor, or outside, located in the different rooms to be cleaned.
Only the GDA counter-bracket has a plaster-saving cover as standard, a “patented” system that allows immediate testing of the system by means of a hermetic seal.
To guarantee a perfect installation!
Variants of socket-outlets available for the Traditional Line to install various types of sockets according to the aesthetic and technical requirements of the client.
Coverage Area: Used with standard 7 or 9 m pipes, each socket covers about 30/50 sq. m.
Traditional Line
Plant Solutions

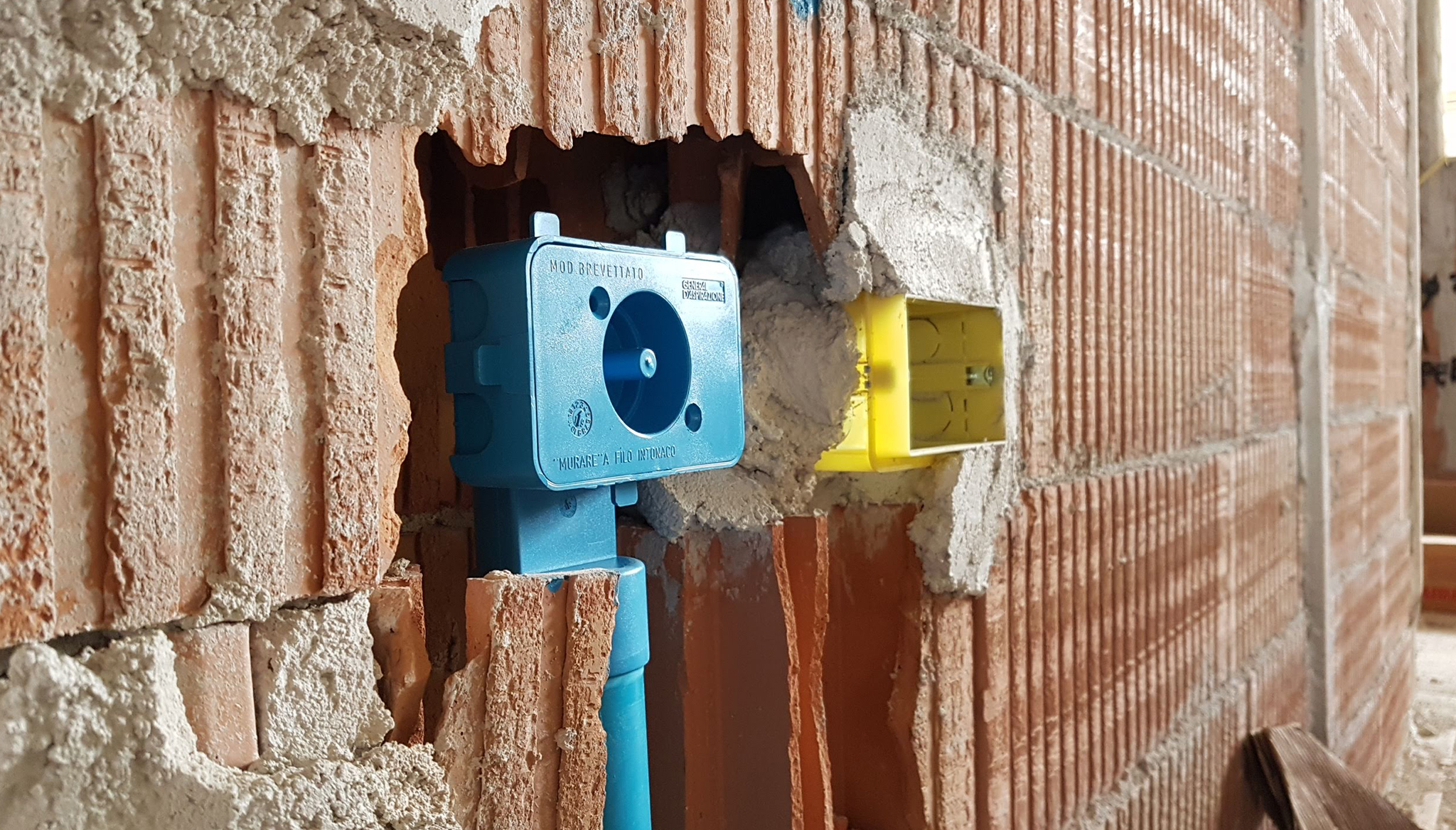

Typical installation at the height of electrical outlets
Mounting on plasterboard wall

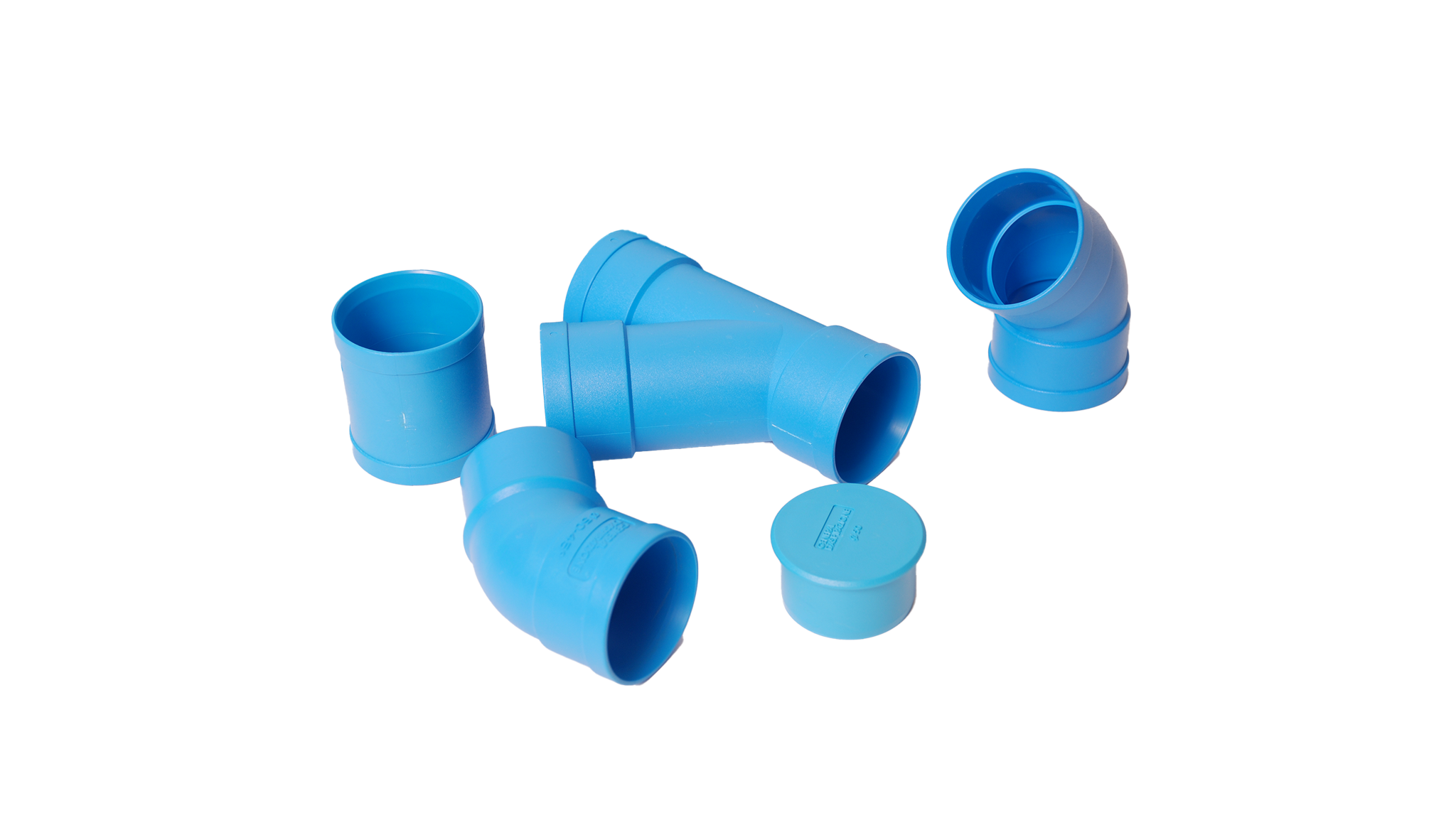

Pipes and fittings of different diameters, calculated according to the type of plant and operators needed
Oval line.
Ideal for situations with limited heights for plant engineering
The products in the Oval line are a General D’Aspirazione exclusive.
Thanks to the reduced tube height of only 24 mm, it is possible to set up a system in rooms where it was previously absolutely unthinkable, while maintaining the system’s suction power and consequent performance.
The Oval Line installation facilitates the installation of the system in those places where the classic 50 mm diameter pipe cannot be installed: it is ideal in renovations, where there is underfloor heating, in prefabricated wooden houses and in cases where there are plasterboard walls with internal soundproofing material.
The Oval line, as well as the traditional ø 50mm line, can be installed on the floor, wall and ceiling: it is also possible, where necessary, to make mixed systems, that is, equipped with both round and oval piping.
Where the system cannot be built below the underfloor heating system, oval piping can be installed along the perimeters.
Oval Line
Plant Solutions

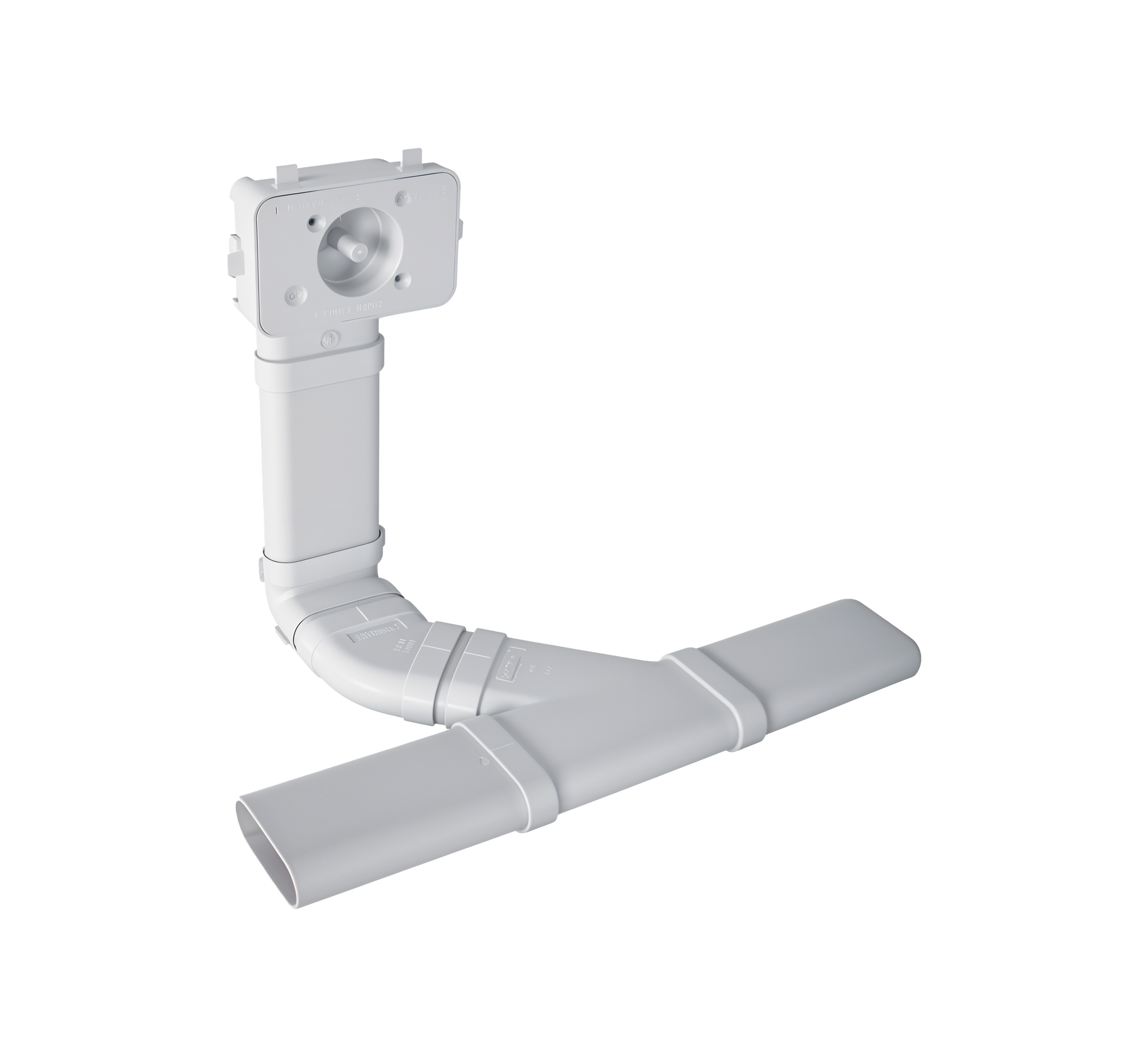

Example of ducting with oval line

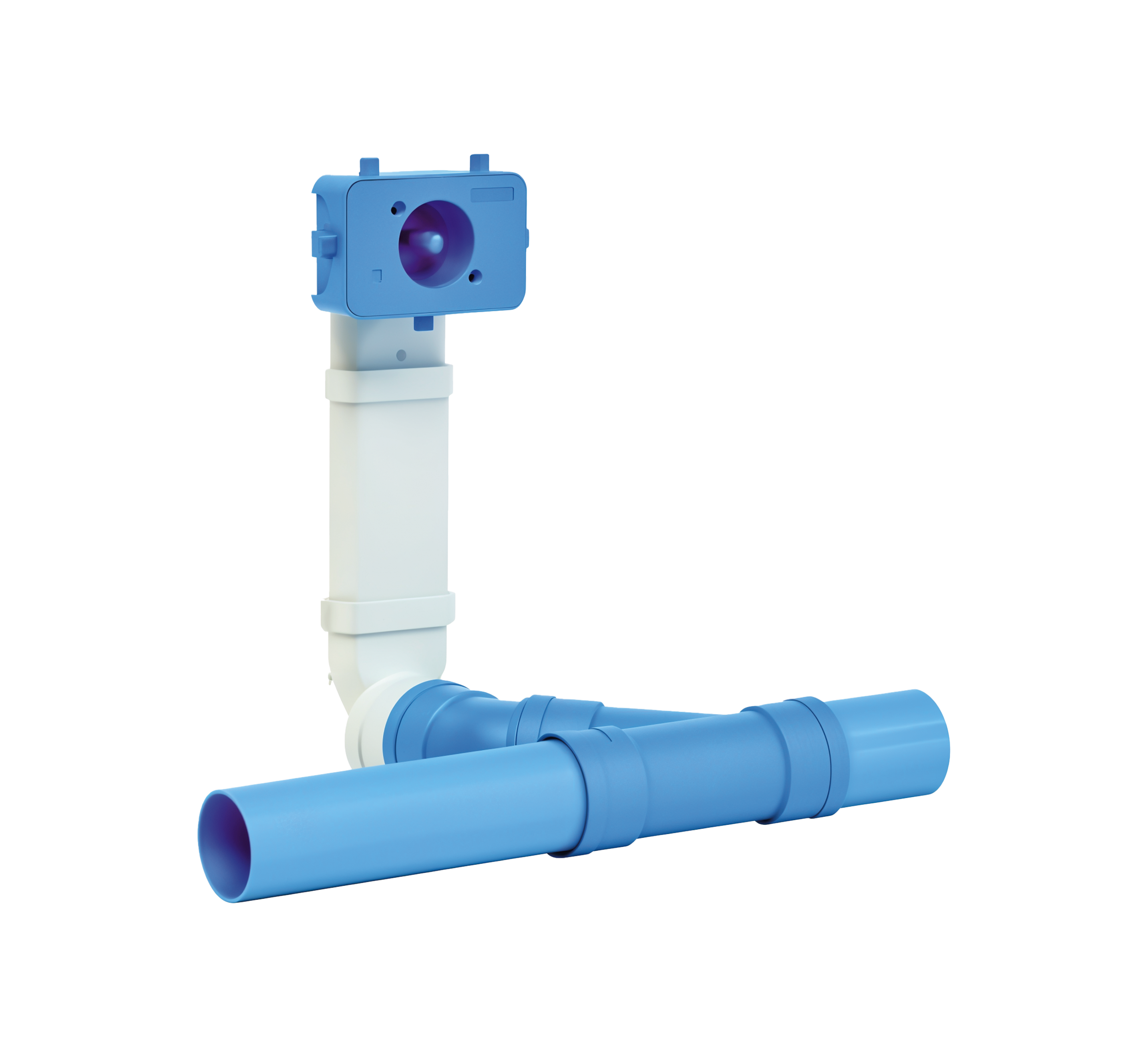

Line diam. 50 to ground and rise to oval line sockets. Particularly suitable solution for installation on plasterboard walls due to the thickness of only 24 mm of the tubing

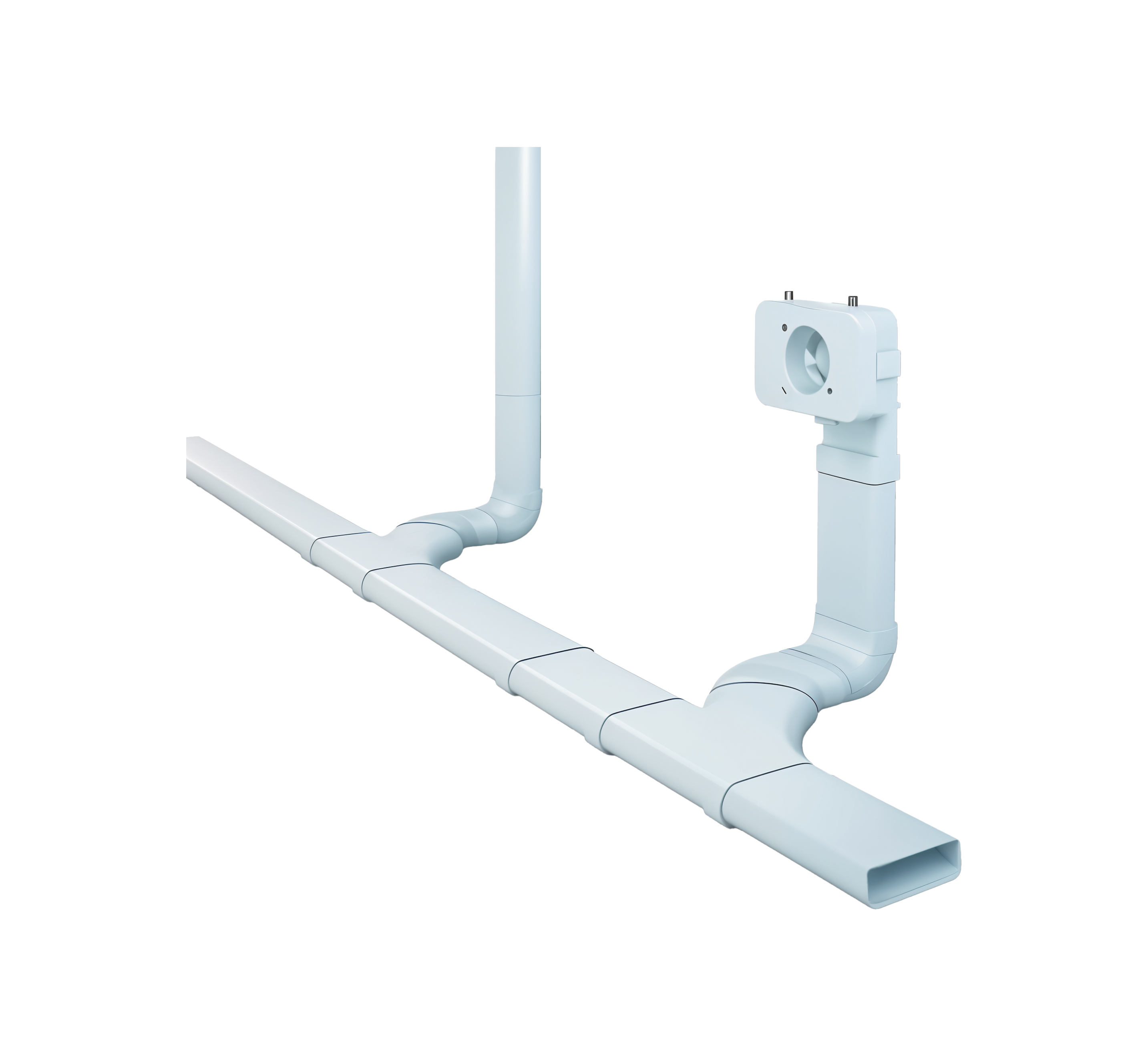

Example of wall climbing on the upper floor
